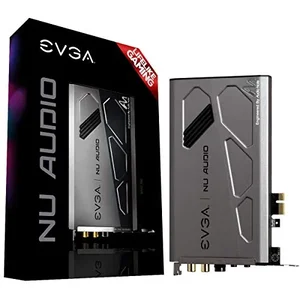

Product Overview
EVGA NU Audio Card, Lifelike Audio, PCIe, RGB LED, Designed with Audio Note (UK). Providing the most immersive audio and lifelike gaming experienced on a PC
Technical Specifications
Audio DSP
XMOS xCORE-200 Output Configuration
2 Channel (Analog)
5.1 Channel (Digital) Dynamic Range (DNR)
123dB (Playback)
121dB (Recording) Signal-To-Noise (SNR)
123dB (Playback)
121dB (Recording) Playback Format (Stereo)
Up to 384kHz, 32bit Playback Format (Optical)
Up to 192kHz, 24bit Headphone Amp
Yes (16-600ohm) Recording Format
Up to 384kHz, 32bit (Line-In)
Up to 192kHz, 24bit (Mic-In) I/O
Stereo Out (RCA (L/R))
Headphone Out (6.3mm)
Line-In (3.5mm)
Mic-In (3.5mm)
Optical Out (TOSLINK Passthrough)
Front Panel Header Premium Components
DAC - AKM AK4493
ADC (Line-In) - AKM AK5572
ADC (Mic-In) - Cirrus Logic CS5346
OP-AMP (Headphone) - ADI OP275
OP-AMP (Line Out) - ADI AD8056
Capacitors - WIMA, Audio Note
Power Regulator - Texas Instruments TPS7A47, TPS7A33 ultralow-noise power solution Switchable OP-AMP
Headphone, Line-Out Interface
PCIe x1 Gen2 Power Connector1x SATA Power RGB Lighting
RGB (10 Mode) with audio reactive lighting Supported OS
Windows 10, 8.1, 7 Item Dimension (L"xW"xH")
8 x 3 x 12
Weight
3 lbs
Warranty Information
3 Years
