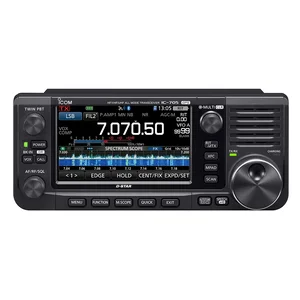

ICOM IC-705 Portable All-Mode Transceiver

The ICOM IC-705 is a compact and lightweight transceiver that combines the performance of a base station with the convenience of portable operation. Whether you're venturing to the mountains for SOTA or heading to a park for POTA, the IC-705 is the perfect companion for all your amateur radio needs!

Key Features:

• Output Power: 10W with 13.8VDC external power supply, 5W with BP-272 li-ion battery pack
• Receiver Type: Direct sampling for high-quality reception
• RX Frequencies: Covers 0.030-470.000 MHz
• Channels: Memory for 500 channels
• Built-in GPS for enhanced functionality

All-Mode Capability:

The IC-705 operates from HF through to 50/144/430 MHz, offering D-STAR DV, SSB, CW, AM, and FM modes. It seamlessly receives from the medium wave band up to 144 MHz, including FM broadcast and airband signals.

RF Direct Sampling Technology:

Experience reduced distortion with the innovative RF direct sampling system. The device features a high-speed, high-resolution real-time spectrum scope and waterfall display for the first time in a portable transceiver.

Advanced Display Features:

The real-time spectrum scope and waterfall display allow users to efficiently monitor band activity and find clear frequencies while on the field.

Enhanced D-STAR Functionality:

Access D-STAR features with ease, including G3 Gateway and DV mode functions. The IC-705 offers direct connectivity to the D-STAR network, with options for Terminal/Access point modes. Plus, you can share photos with other IC-705 units without needing a computer.

Built-in GPS Features:

Utilize the built-in GPS for location logging, RX/TX location tracking via D-PRS, and QSO recording with metadata. Additionally, it can help with internal clock synchronization.

Optional Backpack:

The LC-192 utility backpack is a must-have accessory for field operations, securely holding the IC-705 while providing custom compartments for your accessories.

Additional Highlights:

• Large 4.3-inch touch screen for improved visibility and usability
• Built-in Bluetooth� and wireless LAN for smartphone connectivity
• MicroSD card slot for storing profiles, recordings, and more
• HM-243 programmable speaker/microphone with customizable keys

The ICOM IC-705 Portable All-Mode Transceiver (part number 705 12) is a compact and lightweight communication device designed for amateur radio operators requiring portable, multi-band capabilities. This transceiver is suitable for field operations, offering a balance between base station performance and portability. It addresses the need for flexible communication across HF, 50/144/430 MHz bands, supporting D-STAR DV, SSB, CW, AM, and FM modes. Key features include RF direct sampling for reduced distortion, a real-time spectrum scope and waterfall display for efficient band monitoring, and built-in GPS for location logging and D-PRS tracking. The IC-705 provides 10W output with external 13.8VDC power or 5W with the BP-272 battery pack, making it a practical choice for users who need reliable, versatile radio communication in various environments.
