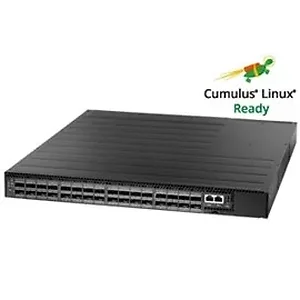

6712-32X-O-AC-F-UK - Edgecore Networking Edgecore Network 6712-32X-O-AC-F-US 32PT 40GbE QSFP+ AC PSU Power-to-power Airf

Switch Ports
32 QSFP+ fixed ports: 40 GbE or 4 x 10 GbE per port
Total switch capacity
32 x 40 GbE
Management ports on port side
1 x RJ-45 serial console
1 x RJ-45 100/1000BASE-T management port
1 x USB Type A storage port
Switch Silicon
Broadcom BCM56850 Trident II 1.28 Tbps
CPU Modules
Intel Atom C2538 quad-core 2.4GHz x86 processor
8 GB SO-DIMM DDR3 RAM with ECC
16MB SPI flash
8GB NAND flash
mSATA SSD (Optional)
Switching Capacity
1.28 Tbps full duplex, with packets>200 bytes
Forwarding Rate
1.44 Bpps
MAC Addresses
320K
VLAN IDs
4K
Packet Buffer Size
12 MB shared buffer pool
Latency (RFC2544)
600 to 720 ns cut thru
40G QSFP+ Port LEDs
Link Status, Activity
Ethernet Management Port LED
Link Status, Activity
Console Port LED
Link Status
System LEDs
Diagnostic, Locator
Item Dimension (L"xW"xH")
27 x 23 x 7
Weight
27 lb
Warranty Information
1 year
