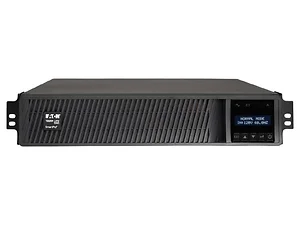

Tripp Lite '643321 Eaton Series SmartPro 1950VA 1950W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Net

Provides complete battery backup and pure sine wave power output for servers, switches and other high-end distributed IT equipment.

• UPC Code: 037332118059
• UPS Type: Line-Interactive
• Input Phase: Single-Phase
• Rated input current (Maximum Load): 16.0A
• Nominal Input Voltage(s) Supported: 120V AC
• UPS Input Connection Type: 5-20P
• UPS Input Cord Length (ft.): 10
• Recommended Electrical Service: 20A 120V
• Output Capacity (VA): 1950
• Output Capacity (kVA): 1.95
• Output Capacity (Watts): 1950
• Output Capacity (kW): 1.95
• Power Factor: 1
• Nominal Voltage Details: 120v nominal output in battery mode
• Frequency Compatibility: 50 / 60 Hz
• Output Voltage Regulation (Battery Mode): 120V (-10%, +6%)
• Load Management Receptacles: Two switched single outlet load banks (2x 5-20R and 2x 5-20R )
• Output AC Waveform (AC Mode): Pure Sine wave
• Output AC Waveform (Battery Mode): Pure Sine wave
• Nominal Output Voltage(s) Supported: 100V; 110V; 120V; 125V
• Output Receptacles: (6) 5-20R; (1) L5-20R
• Individually Controllable Load Banks: Yes
• Battery Type: Valve Regulated Lead Acid (VRLA)
• Runtime Full Load (min.): 4 min. (1950W)
• Runtime Half Load (min.): 12 min. (975W)
• Expandable Runtime: Yes
• Expandable Battery Runtime: Extended runtime supported via optional 72V DC BP72VRM2U external battery packs.
• External Battery Pack Compatibility: BP72VRM2U (limit 4)
• DC System Voltage (VDC): 72
• Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90% (typical, full load discharge)
• Battery Access: Front panel battery access door
• Internal UPS Replacement Battery Cartridge: 744-A4852
• Battery Replacement Description: Hot-swappable, user replaceable batteries
• Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
• Front Panel LCD Display: Front panel rotatable LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
• Switches: 5 pushbutton switches control OFF / ON power status, ENTER, UP, and DOWN selection and ESC control functions
• Alarm Cancel Operation: Press the ESC (Escape) button on the front panel display to silence the alarm. Check the alarm condition and perform the applicable action to resolve the condition. If the alarm status changes, the alarm beeps again, overriding the previous alarm silencing
• Audible Alarm: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
• UPS AC Suppression Response Time: Instantaneous
• EMI / RFI AC Noise Suppression: Yes
• Primary Form Factor: Rackmount; Tower
• Rack Height: 2U
• Cooling Method: Fan
• Included Mounting Accessory Description: Included mounting bracket enables installation in 4 post racks. Two ABS mounting stands enables the UPS to be configured in an upright tower orientation.
• Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount; Tower
• Minimum Required Rack Depth (inches): 27
• Minimum Required Rack Depth with External Battery Pack (cm): 67
• Minimum Required Rack Depth with External Battery Pack (in.): 26.5
• Minimum Required Rack Depth without External Battery Pack (cm): 69
• Minimum Required Rack Depth without External Battery Pack (in.): 27
• Primary UPS Depth (mm): 602
• Primary UPS Height (mm): 86
• Primary UPS Width (mm): 437
• Shipping Dimensions (hwd / in.): 9.40 x 22.80 x 30.90
• Shipping Weight (lbs.): 78.50
• UPS Housing Material: Steel
• UPS Power Module Dimensions (hwd, in.): 3.4 x 17.2 x 23.7
• Unit Dimensions (hwd / in.): 3.400 x 17.000 x 23.700
• Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
• Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
• Relative Humidity: 20 to 95%, non-condensing
• AC Mode Efficiency Rating (100% Load): 96%
• Network Management Cards: WEBCARDLXE
• Network Monitoring Port Description: Network Card Optional
• PowerAlert Software: For local monitoring via the UPSrs built-in communication ports, download PowerAlert Local software at https://tripplite.eaton.com/poweralert
• Communications Cable: USB and DB9 cabling included
• Network Management Card Description: One slot for optional WEBCARDLXE web card. Note: Not compatible with WEBCARDLX
• Communications Interface: Contact closure; DB9 Serial; Slot for SNMP/Web interface; USB (HID enabled)
• Transfer Time: 1-4ms for normal mode
• Low Voltage Transfer to Battery Power (Setpoint): 80
• High Voltage Transfer to Battery Power (Setpoint): 151
• Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
• High Availability UPS Features: Automatic Voltage Regulation (AVR); Expandable battery backup; Hot swappable batteries; Remote management; Sine wave output; Surge/noise protection
• Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
• UPS Applications: Large Network
• Product Certifications: CSA (Canada); UL 1778
• Product Compliance: CE (Europe); ENERGY STAR Qualified; FCC Part 15 Class B (USA)
• Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
