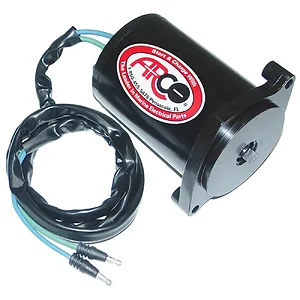

6250 - Arco Marine Replacement Tilt Trim Motor for Late Model Mercury, 2-Wire

Replacement Tilt Trim Motor for Late Model Mercury, 2-Wire

This replacement outboard tilt trim motor is designed for late model Mercury engines including 135, 150 XR6, Magnum lll, 175, 200, 225, 250 HP, and 105-140 HP Jet. It features a 2-wire connection and a 2-bolt mount. The package includes an O-ring, a flat-blade shaft, and bullet connector terminal ends.

ARCO emphasizes the importance of cleaning all electrical connections, as corrosion can create resistance and decrease the amperage necessary for optimal motor operation.

Warranty Information:

All ARCO products come with a warranty against defects in materials and workmanship for a duration of 12 months when installed correctly for leisure use and 90 days for commercial or racing applications.

Extend your warranty by one additional year on your rotating electric ARCO product (including Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase at arcomarine.com/product-registration.

Replaces the following part numbers:

MERCURY Tilt Trim Motor 8M0031551
MERCURY Tilt Trim Motor 8M0060140
MERCURY Tilt Trim Motor 828708
MERCURY Tilt Trim Motor 828708T
MERCURY Tilt Trim Motor 878265A1
MERCURY Tilt Trim Motor 878265A4
SIERRA Tilt Trim Motor 18-6773

The ARCO Marine 6250 Replacement Tilt Trim Motor is designed for late model Mercury outboard engines, specifically 135, 150 XR6, Magnum lll, 175, 200, 225, 250 HP, and 105-140 HP Jet models. This unit serves as a direct replacement for existing tilt trim motors, addressing issues related to motor failure or degraded performance in compatible Mercury engines. It features a 2-wire connection and a 2-bolt mount for straightforward installation. Key components include an O-ring, a flat-blade shaft, and bullet connector terminal ends. The motor is dynamically tested for performance and features induction case hardened motor shafts at bearing surfaces for wear resistance, along with an epoxy powder coating for insulation and protection. This product is suitable for marine service and maintenance operations requiring a reliable replacement for specified Mercury tilt trim systems.
