Load Rite 6080.61 7500lb Disc Brake Actuator – Tie Down Engineering Model

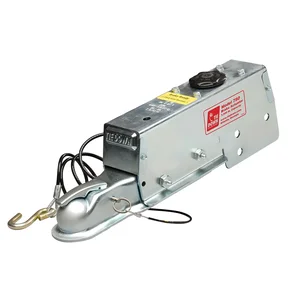

7500lb Disc Brake Actuator – Tie Down Engineering Model

The Model 750E operates through the "surge" mechanism when the trailer moves toward the tow vehicle, automatically syncing the trailer brakes with those of the tow vehicle. As the trailer pushes against the tow vehicle, the actuator telescopes and applies pressure to the master cylinder, generating hydraulic pressure for the brakes. This model includes a built-in dampening shock absorber that mitigates the shock during telescoping against the hitch ball. It is crucial to adhere to state regulations regarding brake requirements, as these laws might only represent minimum standards, and additional braking systems may be beneficial.

Refer to the owner’s manual of your tow vehicle for towing capacity and recommendations prior to installing this actuator or brakes. The Model 750E is fully assembled and ready for installation with compatible tongue sizes of 3”x3”, 3”x4”, and 3”x5”.
