Technical Specifications

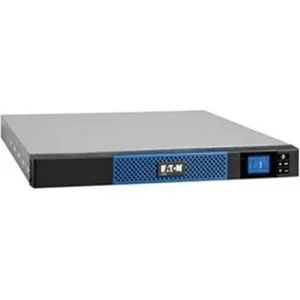

The Eaton 5P Rackmount UPS delivers reliable enterprise class backup power with an efficiency rating of up to 99%. The 5P's graphical LCD display allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Intelligent Power Software Suite, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments. General InformationManufacturer: Eaton CorporationManufacturer Part Number: 5P1500R-LBrand Name: EatonProduct Series: 5PProduct Model: 5P1500R-LProduct Name: 5P1500R-L 1500VA Rack/Wall Mountable UPSProduct Type: Line-interactive UPSTechnical InformationPlug/Connector Type: NEMA 5-15PReceptacles: 6 x NEMA 5-15RPower DescriptionLoad Capacity: 1500 VA/1100 WInput Voltage: 120 V AC, 100 V AC, 125 V ACInput Voltage Range: 89 V AC - 151 V ACOutput Voltage: 120 V AC, 100 V AC, 125 V ACInput Frequency: 50 Hz to 60 HzOutput Frequency: 50 Hz to 60 HzControls/IndicatorsStatus Indicators: LEDs: Load protected On battery Fault Interfaces/PortsNetwork (RJ-45): YesUSB (HID Compliant) Port: YesBattery InformationBattery Chemistry: Lithium Iron Phosphate (LiFePO4)Backup/Run Time (Full Load): 4 MinuteBackup/Run Time (Half Load): 11 MinuteReplaceable Battery: YesEnvironmental ConditionsMaximum Operating Temperature: 104°F (40°C)Storage Temperature: 5°F (-15°C) - 122°F (50°C)Maximum Operating Elevation: 9842.52 ftStorage Relative Humidity: 0% - 90%Sound Emission: 45 dBPhysical CharacteristicsHeight: 1.7"Width: 17.2"Depth: 21.8"Rack Height: 1UForm Factor: Rack/Wall MountableWeight (Approximate): 36.40 lbMiscellaneousPackage Contents: 5P1500R-L 1500VA Rack/Wall Mountable UPS 6-foot RS-232 Cable USB Cable Environmentally Friendly: YesEnvironmental Certification: RoHSWarrantyLimited Warranty: 5 Year
