SKU: VX4BPQX4NQ |  Mfg. Part: 5KU202  | UPC: 065030878470  |
 1 Reviews
 |     Share Make an offer

Startech 5KU202 Dual HDMI over CAT6 Extender - 1080p over CAT6 or CAT5e - Extend dual source HDMI video over CAT6 to dis

Out of Stock
Condition: New

$509.19  $687.41

Product Overview

Charge your devices using an MFi certified Lightning cable built to withstand your daily routine SpecificationsCable Type: Lightning/USBCable Length: 3.30 ft.Connector on First End: 1 x 4-pin Type A Male USB 2.0 USBConnector on Second End: 1 x 8-pin Lightning Male Proprietary ConnectorConnector Plating: NickelShielding: YesDevice Supported: SmartphoneMFI: YesAmerican Wire Gauge: 22/32 AWGEnvironmentally Friendly: YesEnvironmental Certification: WEEEWeight: 5.35 lbs- SKU: ISTR189327

Technical Specifications

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST222HDBT
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:ST222HDBT

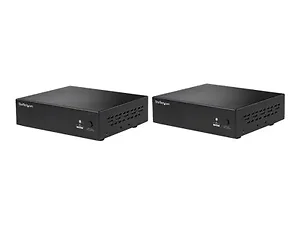

Product Name:Dual HDMI over CAT6 Extender - 1080p
Marketing Information:

This HDMI® over CAT6 extender lets you extend two HDMI sources up to 90 m (295ft.), to individual HDMI displays over a single CAT6 cable. Designed for a simple, tidy setup, the extender also supports bi-directional IR control for added flexibility.

Dual source support

Reduce the need for additional equipment and cables, by extending two HDMI connections with a single CAT6 cable. Running only onecable can save cost on installation or enable you to extend two HDMI signals using an existing cable run. You can also use this 1080p HDMI extender to run separate video signals to the same display, for mission critical digital signage applications where if one signal goes down, the other can easily be swapped in it's place.

Bi-directional control

With bi-directional IR control, you can control your devices from either end of theextension, such as a Blu-ray™ player and laptop on one end and two TV displays on the other. Theextender includes an IR kit with discreet dongles that easily connect to both your transmitter and receiver, enabling you to remotely control any device you choose from either side of your extension.

Simplified setup

The simplicity of one-cable setup avoids the hassle of running multiple cables, while also reducing potential failure points. The included mounting hardware offers professional mounting options ideal for public spaces such as offices or auditoriums.

The TAA compliant ST222HDBT is backed by a 2-year StarTech.com warranty and free lifetimetechnical support.


Product Type:Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:295.28 ft
Video
Graphics Modes:Full HD
Maximum Video Resolution:1920 x 1080
Interfaces/Ports
Network (RJ-45):Yes
HDMI In:Yes
HDMI Out:Yes
Serial Port:Yes
Number of Network (RJ-45) Ports:2
Number of HDMI Inputs:2
Number of HDMI Outputs:2
Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6
Physical Characteristics
Transmitter Height:1.70"
Transmitter Width:5.10"
Transmitter Depth:6.20"
Receiver Height:1.70"
Receiver Width:5.10"
Receiver Depth:6.20"
Form Factor:Desktop
Transmitter Weight (Approximate):5.29 lb
Receiver Weight (Approximate):5.29 lb
Miscellaneous
Package Contents:
  • 1 x HDMI Transmitter
  • 1 x HDMI Receiver
  • 2 x Universal Power Adapters (NA/JP, EU, UK, ANZ)
  • 2 x Sets of Mounting Brackets
  • 1 x IR Blaster
  • 1 x IR Receiver
  • 1 x CAT5 Cable
  • 8 x Rubber Feet
  • 1 x User Manual

Environmentally Friendly:Yes
Environmental Certification:
  • WEEE
  • RoHS
  • REACH

Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:2 Year

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • STARTECH
  • 5KU202
  • B07G8PGSQH
  • 065030878470
  • New
  • 5.4 lbs
  • 478 X 74 X 230
  • Mar 21, 2026
  • Jul 24, 2020
Product Identifiers: Brand: Startech • Part #: 5KU202 • UPC: 065030878470 • ASIN: B07G8PGSQH • Category: Video Cables & Interconnects

Startech 5KU202 Dual HDMI over CAT6 Extender - 1080p over CAT6 or CAT5e - Extend dual source HDMI video over CAT6 to dis

Reviews for Startech 5KU202

$509.19
