Technical Specifications
Planar Part Number
997-8185-00 Product Name

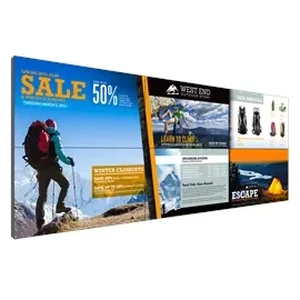

LX55HDU-L-F Technology
Commercial-grade direct view LCD Diagonal
55 inches Aspect Ratio
16:9 Native Resolution Panels
1920 x 1080 Tiled Bezel Width
3.7 mm Brightness (typ)
500 cd/m or nits Response Time (typ)
8 ms Contrast ratio (full field)
3500:1 Full viewing angle
178 degrees Backlight life (1/2 brightness)
50,000 Hrs Mounted depth
3.6" wall to front of screen Acoustic noise
Fanless operation Heat load
520 BTU per hour at 500 nit Mounted depth
3.6" wall to front of screen Acoustic noise
Fanless operation Heat load
520 BTU per hour at 500 nit Operating temperature range
5 - 40 Degrees C Operating humidity range
20-90% RH non-condensing
