Condition: New
| Frequency: | VHF Marine Band |
| Bandwidth: | 7 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Radiation pattern: | Omni-directional |
| Gain: | 3 dB |
| Max Input (Watts): | 50 watts |
| DC Ground: | YES |
| Height (feet): | 3 |
| Polarization: | Vertical |

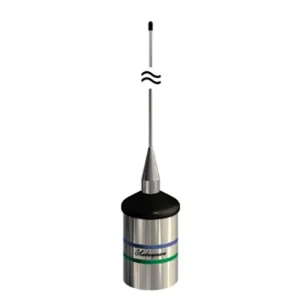

The Shakespeare 5241 3' VHF Antenna is a compact marine antenna designed for reliable VHF Marine Band communication. This 3-foot, end-fed 1/2-wave antenna features a heavy-duty stainless steel whip, providing stability for vessels operating at higher speeds. Its low-profile design and 3 dB gain make it suitable for installations where space is a primary consideration, such as on bass boats or center console fishing boats. The antenna incorporates a chrome-plated brass canister to mitigate de-tuning and a sealed, tin-plated copper wire coil for consistent performance. It operates within a 7 MHz bandwidth and has an SWR of 1.5:1 at 156.8 MHz. The 5241-R antenna includes 15 feet of RG-58 cable with a PL-259 connector and requires a mount with a center hole for cable passage. It supports a maximum input of 50 watts and offers omni-directional, vertical polarization.
This antenna is designed for bass boats, center console fishing boats, or any vessel where a compact size is important due to its 3-foot length and low-profile design.
The antenna comes with a heavy-duty stainless steel whip, 15 feet of RG-58 cable, and a PL-259 connector. A mount is required and sold separately.
Suggested mounts include Shakespeare Styles 4187, 4188-S, or 4190 Ratchet Mounts. The chosen mount must have a center hole for the cable to pass through.
The antenna can handle a maximum input of 50 watts.
5241-R - Shakespeare 5241 3' VHF Antenna
