4502 - Arco Marine Zeus 24V 7kW Alternator for Common Rail Engines

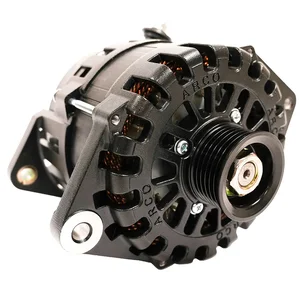

ARCO Marine Zeus 24V 7kW Alternator for Common Rail Engines

This high-performance 24V alternator is specifically engineered for marine and commercial applications. The ARCO Zeus alternator delivers exceptional power with 7kW output, producing high amperage at cruising and elevated RPMs. Designed to operate efficiently under various load conditions, this alternator generates over 3kW (109 Amps) at just below 3,000 RPM and peaks to nearly 6kW (218 Amps) at 6,000 RPM.

Ideal for marine diesel engines and commercial vehicles, the ARCO Zeus alternator runs cooler and operates more efficiently than larger, older designs. It features a native 24V rotor and field current, significantly enhancing its lifespan and performance. With advancements such as dual cooling fans and an external rectifier, the Zeus alternator represents the pinnacle of modern alternator technology.

Technical Specifications:

• Voltage - 24v
• Field Type - P
• Max Output - 284 Amps
• Weight - 15.89 lbs (7.2 kg)
• Sustained Cruising Output (Hot, 6,000 RPM) - 220 Amps
• Max Continuous Operating Temperature - 100°C (212°F)
• Compatible with Yanmar Common Rail Engines Post-2013

The ARCO Marine Zeus 24V 7kW Alternator, part number 4502, is engineered for marine and commercial applications requiring substantial power generation. This alternator is designed to provide high amperage output, particularly at cruising and elevated RPMs, making it suitable for charging large battery banks in demanding environments. It delivers over 3kW (109 Amps) at just under 3,000 RPM and reaches nearly 6kW (218 Amps) at 6,000 RPM. The Zeus alternator operates with a native 24V rotor and field current, which contributes to its enhanced lifespan and efficient performance. Its design incorporates dual cooling fans and an external rectifier to maintain cooler operating temperatures compared to older designs. This unit is compatible with Yanmar Common Rail Engines post-2013 and is SAE J1171 Certified, ensuring reliable operation in marine settings.
