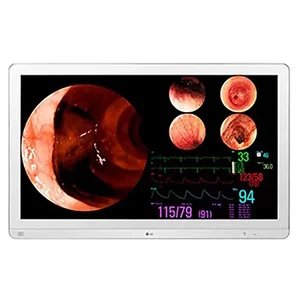

32HL710S-W - Lg Electronics 32IN LED LCD MON 4K MEDICAL

DISPLAY
Aspect Ratio
16:9
Brightness (Typ.)
800
Color Gamut (Typ.)
sRGB 115% (Area),
Over 99% (Coverage)
Contrast Ratio (Typ.)
1000:1
Panel Type
IPS
Peak Brightness (Typ.)
800
Pixel Pitch
0.18159(H)mm x 0.18159(V)mm
Resolution
3840 x 2160
Response Time (GTG)
14ms (Off), 5ms (Faster)
Size (cm)
80.0051
Surface Treatment
Protection Glass (1.6t, AR, AF)
Viewing Angle (CR is less than or equal to 10)
178(R/L), 178(U/D)

FEATURE
Auto Luminance sensor
Yes
Black Stabilizer
Yes
Factory Calibration
Yes (Delta E<5, Gamma 1.8 to 2.6/DICOM curve)
DICOM
Yes ( is less than or equal to 10%)
Color Temperature
6500K/7500K/9300K
Manual (5000K to 10000K)
Flicker safe
Yes
HDR 10
Yes
HDR Effect
Yes
HW Calibration
Yes (True color pro)
OSD Language
17 Languages
PBP
Yes (2PBP/3PBP/4PBP)
PIP
Yes
Picture Mode
(SDR) Custom, Mono, Vivid, HDR Effect, DICOM, Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard
Screen Flip
Yes
Smart Energy Saving
Yes
Super Resolution+
Yes
Uniformity
Yes

SW APPLICATION
True Color Pro
Yes

CONNECTIVITY
3G-SDI
Yes (3G,IN x 1/OUT x 1)
DP Version
1.2
DVI
Yes (1In / 1Out)
DisplayPort
Yes (in 1ea/out 1ea)
HDMI
Yes (1ea)
HDMI Version
2.0
RS-232
Yes
USB Downstream Port
Yes (1ea/ver2.0)
USB Upstream Port
Yes (1ea/ver2.0)

POWER
AC Input
100-240Vac, 50/60Hz
DC Output
19-24V, 6.32A-5.0A (24V Ready)
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
120W
Type
External Power (Adapter)

MECHANICAL
Wall Mountable
200 x 100 mm and 100 x 100 mm

STANDARD
IEC (IEC 60601-1/IEC 60601-1-2)
Yes
EN (EN 60601-1/EN 60601-1-2)
Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
Yes
FCC (FCC part 15 Class A)
Yes
FDA
Registration (Class I)
CE (MDD 93/42/EEC, 2007/47/EC)
Yes
ISO13485
Yes
GMP
Yes
KGMP
Yes
RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
IP (front/except for front)
IP35/IP32
Vandal-proof
IK06

ACCESSORY
Adapter
Yes
Calibration Report (Paper)
Yes
Display Port
Yes
HDMI
Yes
Power Cord
Yes


Item Dimension (L inchxW inchxH inch)
35 x 24 x 8

Weight
49.00LB

Warranty Information
3 Year Limited
