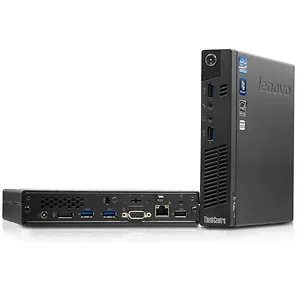

| Product Description | Lenovo ThinkCentre M92p 3228 - Core i5 3470 3.2 GHz - Monitor : none. |
| Type | Personal computer |
| Platform Technology | Intel vPro Technology |
| Form Factor | Tower |
| Localization | English |
| Processor | 1 x Intel Core i5 (3rd Gen) 3470 / 3.2 GHz ( 3.6 GHz ) ( Quad-Core ) |
| Processor Socket | LGA1155 Socket |
| Processor Main Features | Intel Extended Memory 64 Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| Cache Memory | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | 4 GB (installed) / 32 GB (max) - DDR3 SDRAM - 1600 MHz - PC3-12800 |
| Storage Controller | SATA ( SATA-600 ) |
| Hard Drive | 1 x 500 GB - SATA-600 |
| Optical Storage | DVD-Writer |
| Monitor | None. |
| Graphics Controller | Intel HD Graphics 2500 |
| Audio Output | Integrated - stereo |
| Networking | Gigabit LAN |
| Power | AC 120/230 V ( 50/60 Hz ) |
| OS Provided | Microsoft Windows 7 Professional 64-bit Edition |
| Microsoft Office Preloaded | Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC. |
| Dimensions (WxDxH) | 6.9 in x 17.4 in x 16.3 in |
| Weight | 24.3 lbs |
| Manufacturer Selling Program | Global Models Plus |
| Environmental Standards | ENERGY STAR Qualified , EPEAT Gold |
| Manufacturer Warranty | 3 years warranty - on-site |
| General |
| Intel vPro Technology | | | Personal computer | | | Tower | | | Speaker | | | Trusted Platform Module (TPM 1.2) Security Chip | | | Business black | | | English | | |
| Processor / Chipset |
| Intel Core i5 (3rd Gen) 3470 / 3.2 GHz | | | 3.6 GHz | | | Quad-Core | | | Yes | | | 1 | | | 1 | | | Intel Extended Memory 64 Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 | | | LGA1155 Socket | | | Intel Q77 Express | | |
| Cache Memory |
| |
| RAM |
| 4 GB / 32 GB (max) | | | DDR3 SDRAM | | | 1600 MHz | | | PC3-12800 | | | DIMM 240-pin | | | Unbuffered, dual channel memory architecture | | | 1 x 4 GB | | |
| Hard Drive |
| HDD | | | 1 x 500 GB | | | SATA-600 | | | 7200 rpm | | |
| Storage Controller |
| 1 x SATA - integrated | | | SATA-600 | | | RAID 0, RAID 1 | | |
| Optical Storage |
| |
| Monitor |
| |
| Graphics Controller |
| Integrated | | | Intel HD Graphics 2500 | | | DisplayPort | | | 2 | | |
| Audio Output |
| Integrated | | | Stereo | | | High Definition Audio | | |
| Input Device |
| |
| Keyboard |
| |
| Mouse |
| |
| Networking |
| Integrated | | | Intel 82579 | | | Ethernet, Fast Ethernet, Gigabit Ethernet | | | Wake on LAN (WoL) | | |
| Expansion / Connectivity |
2 (total) / 1 (free) x external 5.25" x 1/2H
2 (total) / 1 (free) x internal 3.5" x 1/3H
1 (total) / 1 (free) x external 3.5" x 1/3H | | 4 (total) / 3 (free) x DIMM 240-pin
1 (total) / 0 (free) x CPU
1 (total) / 1 (free) x PCIe 2.0 x16 - half-length, full-height
1 (total) / 1 (free) x PCIe 2.0 x1 - half-length, full-height
2 (total) / 2 (free) x PCI - half-length, full-height | | 4 x USB 2.0 ( 2 front, 2 rear )
4 x USB 3.0
2 x microphone ( 1 front, 1 rear )
1 x headphones ( 1 in front )
1 x serial
1 x LAN (Gigabit Ethernet)
1 x audio / video - VGA
1 x DisplayPort
1 x audio line-in
1 x audio line-out | | |
| Miscellaneous |
| Security lock slot (cable lock sold separately), hard drive password, power-on password, boot without keyboard or mouse, serial port I/O control, USB port control, boot sequence control, Intel Active Management Technology (iAMT), padlock loop, 85% efficiency power supply, cable locking mechanism | | | RoHS, GREENGUARD | | | Global Models Plus | | |
| Power |
| Power supply | | | AC 120/230 V ( 50/60 Hz ) | | | 280 Watt | | |
| Operating System / Software |
| Microsoft Windows 7 Professional 64-bit Edition | | | Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC. | | | ThinkVantage Power Manager, ThinkVantage Rescue and Recovery, Adobe Reader, Skype, ThinkVantage System Update, Lenovo Password Manager, Corel DVD MovieFactory, Norton Internet Security (30 days subscription), ThinkVantage Product Recovery, Microsoft Live, Corel Burn.Now Lenovo Edition, Lenovo Simple Tap, Lenovo Message Center Plus, ThinkVantage Communication Utility, ThinkVantage View Management Utility, Lenovo Solution Center, Lenovo AppShop | | |
| Environmental Standards |
| |
| Manufacturer Warranty |
| 3 years warranty | | | Limited warranty - 3 years - on-site | | |
| Dimensions & Weight |
| 6.9 in | | | 17.4 in | | | 16.3 in | | | 24.3 lbs | | |
