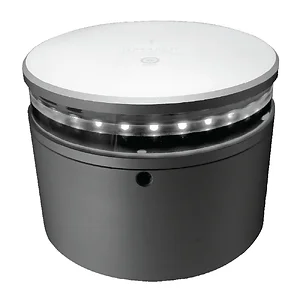

360° Double White Anchor Light 3nm - Aluminum Base
3nm 360º White anchor light, double, CD/CS, K-lock alu base (PE base plate incl)
Features:
- LED (Light Emitting Diode) navigation light
- Unique and precise definition of light angles
- Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics
- Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin
- Waterproof to IP 68+ (submersible)
- Low power consumption – 70 to 90% less than traditional navigation lights
- Full brightness with input voltages ranging from 10 to 32 Volts
- All Lopolights have been tested several times during production, a total of more than 24 hours
- Easy to install, adaptor and screws included (when applicable)
Specifications:
- Approvals: Worldwide type approval
- Included In Package: 1 Navigation light, Installation instructions and with cable glands and blinding caps as appropriate
- Measurements: 92,5 mm (3,64 in) - 63 mm (2.5 in) – 400 gram (14 oz) Available in several versions: Single light Double stacked light Cable outlets to side or bottom With or without mounting flange (base plate)
- Materials: Black anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Supply Voltage: 10-32 VDC
- Power Consumption: 2.4 Watt Current @ 12 VDC: 0,2 A: Current @ 24 VDC: 0,1 A
- Light Colors: White - 360°
- Intensity: >15 cd
- Visibility (@K=0.8): >3nm
- Number of LEDs: 28 (single light) - 56 (double light)
- Suggested feed cables: 12 VDC: 2 x 0,50 mm2 (maximum outer diameter 12,5mm) 24 VDC: 2 x 0,50 mm2 (maximum outer diameter 12,5mm)
- Vessel Size: Above 50
- Mounting: Horizontal
