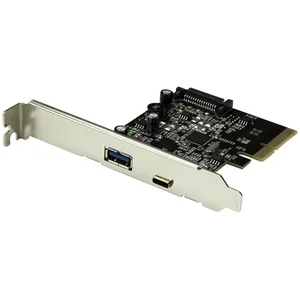

2CN573 - Startech Dual Port USB 3.1 Card - 1x USB-C - 1x USB-A - 10Gbps per port - Expansion Card - USB 3.1 PCI-E Card -

Hardware
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
ASMedia - ASM2142
Industry Standards
USB 3.1 Specification Rev. 1.0
USB Specification Rev. 2.0
PCI Express Base Specification Rev. 3.0
Intel xHCI Specification Rev. 1.1
UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface
USB 3.1 Gen 2
Port Style
Integrated on Card
Ports
2
Performance
Maximum Data Transfer Rate
10Gbps
Type and Rate
USB 3.1 Gen 2 - 10 Gbit/s
UASP Support
Yes
Connector(s)
Connector Type(s)
1 - PCI Express x4 Male
External Ports
1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Female
1 - USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Female
Internal Ports
1 - SATA Power (15 pin) Plug
Software
OS Compatibility
Windows 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2016
Linux 3.5 to 4.11.x LTS version only
Special Notes / Requirements
Note
The cards USB-C port is a standard data throughput port. It does not support DP Alt Mode or USB Power Delivery.
The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
The available bandwidth (10Gbps) is shared equally between the two ports.
System and Cable Requirements
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
Optional SATA power connector
Environmental
Humidity
20-80% RH
Operating Temperature
5^o to 50^oC (41^o to 122^oF)
Storage Temperature
-20^o to 60^oC (-4^o to 140^oF)
Whats in the Box
Included in Package
1 - USB 3.1 card
1 - low-profile bracket
1 - quick-start guide
Item Dimension (L inchxW inchxH inch)
7 x 6 x 2 Weight
1.00lb Warranty Information
2 Years Warranty
