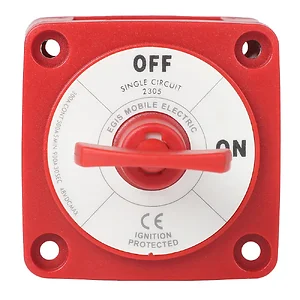

M-Series 300A Battery Switch Off/On Key Actuator
Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected - Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications:
The Egis M-Series 300A Battery Switch (part number 2305) is an Off/On key actuator designed for managing power in single or dual circuit electrical systems. This switch is suitable for IT infrastructure and industrial applications requiring robust power control. It features a sealed design for protection against dust and water intrusion, contributing to system reliability in various environments. Ignition protection, rated to SAE J1171 / ISO 8846, allows for safe installation in enclosed compartments where explosive gases may be present. The design incorporates stainless steel hardware and serrated flange lock nuts to enhance resistance to cable terminal loosening, particularly in high-vibration settings. Flexible mounting options support diverse installation types, making it a practical component for system integrators and electrical engineers managing power distribution in demanding operational contexts.
The maximum voltage for a single circuit configuration is 48 Vdc. For selector or dual circuit configurations, the maximum voltage is 32 Vdc.
This switch is designed for harsh environments with features such as stainless steel hardware, serrated flange lock nuts to resist cable loosening, and high-temperature materials. It is also sealed against dust and water intrusion.
To meet the switch's rating, a cable size of 4/0 AWG is recommended. The ring terminal size acceptance is 3/8" (M10).
The switch offers flexible mounting options, including bulkhead or panel mounting. The required mounting hole size for bulkhead/panel installation is 2-5/8" / 2-5/16".
2305 - Egis Mobile Electric Egis M-Series 300A Battery Switch Off/On Key Actuator
