Technical Specifications
Benefits
Low cost solution ideal for density optimized servers requiring direct connectivity to up to 28 internal ports for a SAS adapter and/or SATA HDDs and SSDs. Supports 12Gb/s data rates and is backward compatible to 6Gb/s. Key Differentiators
36 ports (28 internal, 8 external) in low-profile MD2 form factor
Enables both internal and external connectivity
Backwards compatible to 6Gb/s for legacy 6G SAS or SATA devices
Complete portfolio of mini-SAS HD cables available Key Differentiators
36 ports (28 internal, 8 external) in low-profile MD2 form factor
Enables both internal and external connectivity
Backwards compatible to 6Gb/s for legacy 6G SAS or SATA devices
Complete portfolio of mini-SAS HD cables available Management Utilities
Adaptec maxView Storage Manager PCIe Slot Power
PCIe x4 interface Auxiliary Power Connector
Yes Data Transfer Rate
12 Gb/s per port
6 Gb/s per port Form Factor
PCIe (MD2) Package Contents

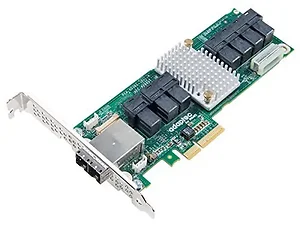

Adaptec SAS Expander 82885T Card Operating Current
1.34A 12 VDC Regulatory Certification
CE, FCC, UL, C-tick, VCCI, KCC, CNS Environmental Compliance
RoHS Weight
0.81
Item Dimension
11.42 x 7.48 x 1.57
Warranty Information
3 Years
