SKU: AZTEKLYARJ |  Mfg. Part: 2260200-R (RAID 2405 ROHS SGL)  | UPC: 760884155721  |
 1 Reviews  |     Share

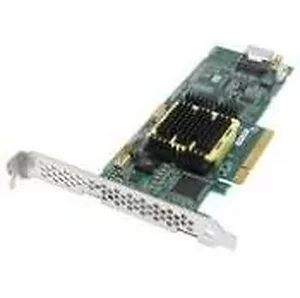

Adaptec 2260200-R (RAID 2405 ROHS SGL) 2405 PCIe RAID Controller Card for SATA/SAS Drives

Out of Stock
Condition: New

$284.81  $384.49
 Free Shipping for this Item

Product Overview

The Adaptec 2405 RAID controller card offers high-performance RAID solutions for SATA and SAS drives, ideal for data storage and management needs. With its low-profile design, it supports up to 128 I/O devices using SAS expanders and provides advanced RAID features to protect your data.

The controller is equipped with a powerful 800MHz dual-core RAID on chip (ROC) and 128MB DDR2 cache, ensuring fast data access and transfer rates. Whether you are setting up a new server or expanding an existing RAID system, the Adaptec 2405 delivers reliability and optimal performance.

Technical Specifications

  • Specifications:
    • 4x internal ports support up to 128 SATA/SAS I/O devices using SAS expanders
    • 800MHz Dual Core RAID on Chip (ROC)
    • High-performance RAID levels 0, 1 & 10
    • 128MB DDR2 cache
    • Low-profile MD2 form factor
    • Supports SATA and SAS tape drives
    • 3Gb/s throughput at each drive port
    • PCI-Express x8 host interface
    • Enclosure management support via LED header and SES2/SGPIO
  • RAID Features:
    • Supports 4 direct-attached or up to 128 SATA or SAS disk drives using SAS expanders
    • Quick initialization and online capacity expansion
    • Copyback hot spare and dynamic caching algorithm
    • Native Command Queuing (NCQ) and background initialization
    • Hot-plug drive support with RAID Level Migration
    • Configurable stripe size and S.M.A.R.T. support
    • Dynamic sector repair and staggered drive spin-up
    • Bootable array support and optimized disk utilization
  • Management Utilities:
    • Adaptec Storage Manager (ASM) with Java-based GUI
    • Remote configuration, monitoring & notification
    • Command line interface (ARCCONF)
    • Adaptec BIOS Utility (ACU) for BIOS level configuration
  • Supported Operating Systems: Microsoft Windows, Red Hat Linux, SUSE Linux, SCO OpenServer, UnixWare, Sun Solaris, FreeBSD, VMware ESX Server
  • Mean Time Before Failure (MTBF): 873,402 hours at 40°C
  • Operating Voltage: 1amp @ 3.3V
  • Regulatory Certification: CE, FCC, UL, C-tick, VCCI
  • Dimensions: 6.6 x 2.5 inch / 167 x 64 mm

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • ADAPTEC
  • 2260200-R (RAID 2405 ROHS SGL)
  • 760884155721
  • New
  • 1 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jan 09, 2013
Product Identifiers: Brand: Adaptec • Part #: 2260200-R (RAID 2405 ROHS SGL) • UPC: 760884155721 • Category: Disk Controllers/RAID Cards
