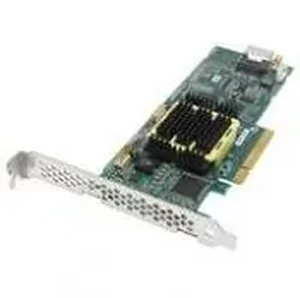

Adaptec 2260100-R (RAID 2405 ROHS KIT) RAID 2405 4-Port PCIe SAS/SATA Controller

Out of Stock
Condition: New

$323.83  $437.17
 Free Shipping for this Item

Product Overview

The Adaptec RAID 2405 is a high-performance RAID controller designed for 4 internal ports, supporting up to 128 SATA/SAS I/O devices through SAS expanders. Powered by an 800MHz Dual-Core RAID on Chip (ROC) and equipped with 128MB DDR2 cache, this low-profile MD2 form factor controller ensures excellent data throughput and reliability for critical storage applications.

Whether you need RAID 0, 1, 10, or JBOD configurations, the Adaptec RAID 2405 delivers strong performance with features such as online capacity expansion, dynamic caching algorithms, and hot-plug support, making it an ideal solution for modern data centers.

Technical Specifications

Specifications
  • 4x internal ports support up to 128 SATA/SAS I/O devices using SAS expanders
  • 800MHz Dual Core RAID on Chip (ROC)
  • High-performance RAID levels: 0, 1, 10
  • 128MB DDR2 cache
  • Low-profile MD2 form factor
  • Supports SATA and SAS tape drives
  • 3Gb/s throughput at each drive port
  • PCI-Express x8 host interface
  • Enclosure management support via LED header and SES2/SGPIO
  • RAID features: Quick initialization, Online Capacity Expansion, Dynamic caching, NCQ, Hot-plug drive support
  • Management Utilities: Adaptec Storage Manager (ASM), Command Line Interface (ARCCONF), and BIOS Utility (ACU)
  • Supported Operating Systems: Windows, Red Hat Linux, SUSE Linux, UnixWare, VMware ESX Server
  • Mean Time Before Failure (MTBF): 873,402 hours at 40°C
  • Operating Voltage: 1amp @ 3.3V
  • Regulatory Certification: CE, FCC, UL, etc.
  • Dimensions: 6.6 x 2.5 inch / 167 x 64 mm
  • RoHS Compliant

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • ADAPTEC
  • 2260100-R (RAID 2405 ROHS KIT)
  • 760884155714
  • New
  • 1 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jan 09, 2013
Product Identifiers: Brand: Adaptec • Part #: 2260100-R (RAID 2405 ROHS KIT) • UPC: 760884155714 • Category: Disk Controllers/RAID Cards
