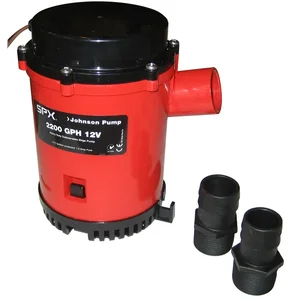

22003 - Johnson Pump 2200 GPH Bilge Pump 1/8" Hose 12V Threaded Port

• Heavy duty, 12-pole double ball bearing motor

• Liquid cooled for extended motor life

• Quality engineered mechanical/lip seal

• ISO 8849 Marine and CE standards

• Easily interchangeable with most similar bilge pumps

• Pump body: Thermoplastic

• Shaft seal: Mechanical seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V

• Capacity 1.0 m head (13.6 V/27 V): 120 l/min - 1900 GPH

• Capacity straight (13.6 V/27 V): 130 l/min - 2060 GPH

• Amperage: 7.5 A

• Fuse Size: 12 A

• Connection: 1-1/8" and 1-1/4"

• Shaft: SS2343

• Wire size: 1.3 mm2 - 16 GA

• Max height 177 mm - 7"

• Weight 2.7 kg - 6 lbs

The Johnson Pump 2200 GPH Bilge Pump is a heavy-duty 12V bilge pump designed for demanding commercial and recreational marine applications. This unit, part number 22003, features a liquid-cooled, 12-pole motor with double ball bearings, engineered for extended service life. The motor is sealed by a mechanical seal, enhancing durability in marine environments. Its impeller is designed to optimize head and flow, providing a capacity of 1900 GPH at a 1.0m head or 2060 GPH straight. Constructed with a thermoplastic pump body and a stainless steel (SS2343) shaft, this pump offers robust performance. It includes a removable check valve and is CE-Approved, meeting ISO 8849 Marine standards. The pump is suitable for IT buyers managing marine fleets or facilities requiring reliable water removal systems, offering a practical solution for maintaining dry bilges in various vessel types.
