Product Overview

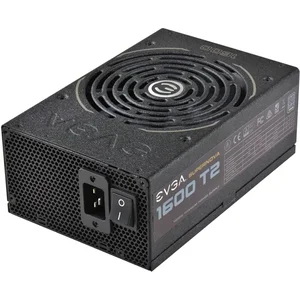

Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode) Introducing the EVGA SuperNOVA 1600 T2 power supply. This power supply raises the bar with 1600W of continuous power delivery and 94% (115VAC) / 96% (220VAC~240VAC) efficiency. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclockability and unparalleled control. The EVGA SuperNOVA 1600 T2 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance.
Technical Specifications
CABLE LENGTH
ATX CABLE:1x 600mm (m)
EPS CABLE:2x 750mm (m)
PCIE CABLE:5x 750mm, 900mm (m) 4x 750mm (m)
SATA CABLE:4x 550mm, 650mm, 750mm (m), 850mm (m)
FOUR-PIN PERIPHERAL CABLE:2x 550mm, 650mm, 750mm (m)
FLOPPY ADAPTER:2x 100mm
AC POWER:1x 1800mm (m)
MODULAR CABLE TYPE:Full CONNECTOR QUANTITY
24 PIN ATX:1x
EPS (CPU):2x 8pin (4+4)
PCIE:9x 8pin (6+2), 5x 6pin
SATA:16x POWER SPECS
115 - 240 VAC, 17-10A, 50 - 60 Hz
RAIL/MAX OUTPUT:
+3.3V/24A/120W
+5V/24A/120W
+12V/133.3A/1599.6W
+5Vsb/3A/15W
-12V/0.5A/6W
TOTAL:1600W at +50C CONNECTOR QUANTITY
24 PIN ATX:1x
EPS (CPU):2x 8pin (4+4)
PCIE:9x 8pin (6+2), 5x 6pin
SATA:16x FOUR-PIN PERIPHERAL
6xv
FLOPPY
2x
ECO MODE
Yes
MTBF
100,000 Hours Item Dimension (L"xW"xH"):
7.88 x 5.91 x 4.73
Weight:
14.7 lb
Warranty Information:
10 Years
