Product Overview

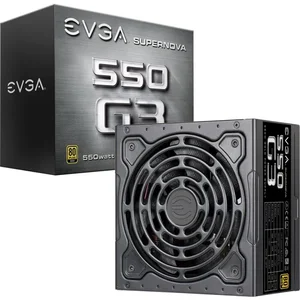

EVGA SuperNOVA power supplies are well known for their extreme efficiency, performance and reliability. In fact, over the last 3 years EVGA SuperNOVA power supplies have won over 70 awards from leading review sites. It is EVGA's dedication to performance that has created the latest power supply platform; the EVGA SuperNOVA G3 Series. With these new power supplies, we take the best features from our award winning G2 lineup and makes them even better. A smaller size, improved performance and a new Hydraulic Dynamic Bearing fan giving you ultra-quiet performance at an increased lifespan.
Technical Specifications
CABLE LENGTH
ATX CABLE : 1x 600mm (m)
EPS CABLE : 1x 700mm (m)
PCIE CABLE : 1x 600mm, 1x 600mm, 750mm (m)
SATA CABLE : 2x 500mm, 600mm, 700mm (m)
FOUR-PIN PERIPHERAL CABLE : 1x 500mm, 600mm, 700mm, 800mm (m)
FLOPPY ADAPTER : 1x 100mm
AC POWER : 1x 1500mm (m)
MODULAR CABLE TYPE : Full CONNECTOR QUANTITY
24 PIN ATX : 1x
EPS (CPU) : 2x 8pin (4+4)
PCIE : 3x 8pin (6+2)
SATA : 6x
FOUR-PIN PERIPHERAL : 4x
FLOPPY : 1x POWER SPECS
AC Input : 100 - 240 VAC, 10A, 50 - 60 Hz
Rail : +3.3V / +5V / +12V / +5Vsb / -12V
Max Output : 22A, 110W / 22A, 110W / 45.8A, 549.6W, 549.6W / 3.0A, 15W / 0.5A, 6W
Total : 550W at +50C ADDITIONAL DETAILS
OPERATING TEMPERATURE : 0o to 50o C
JAPANESE CAPACITORS : 100%
ECO MODE : Yes
MTBF : 100,000 Hours
NET WEIGHT : 7 lbs
APPROVALS : TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
FAN SIZE / BEARING : 130mm Hydraulic Dynamic Bearing Item Dimension (L inchxW inchxH inch)
12 x 11 x 5
Weight
8.00 lb
Warranty Information
7 Years
