Tripp Lite 1R2830 PDU Metered Vertical 5.8kw 208-240V 8 C19 40 C13 L6-30P 0U TAA - NEMA L6-30P - 8 x IEC 60320 C19, 40 x

OVERVIEW
PDU Type
Metered OUTPUT
Frequency Compatibility
50 / 60 Hz
Output Capacity Details
5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank 16A max per C19 outlet 12A max per C13 outlet
Output Receptacles
(40) C13 (8) C19
Output Nominal Voltage
200 208 240
Overload Protection

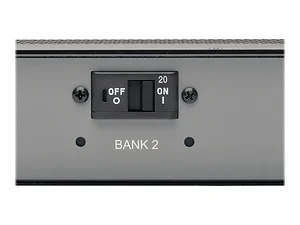

Two 20A breakers protect 24 outlets each INPUT
PDU Input Voltage
200 208 240
Recommended Electrical Service
30A 208/240V
Maximum Input Amps
30
Maximum Input Amps Details
Agency de-rated to 24A continuous
PDU Plug Type
NEMA L6-30P
Input Phase
Single-Phase
Input Cord Length (ft.)
10 USER INTERFACE, ALERTS AND CONTROLS
Reported Load Segments
Supports local monitoring of output current for each output load bank Outlets, circuit breakers and current meters are color-coded and labeled for easy identification (Black: 20A Bank 1 / Gray: 20A Bank 2)
Front Panel LCD Display
Set of two digital current meters report output current in two segments
Front Panel LEDs
n/a
Switches
n/a PHYSICAL
Form Factors Supported
0u vertical installation in equipment racks, plus under-counter and wallmount
Material of Construction
Metal
PDU Form Factor
Vertical (0U) ENVIRONMENTAL
Operating Temperature Range
32 to122F (0 to 50C)
Storage Temperature Range
-30^oC to +60^oC (-22^oF to +140^oF)
Relative Humidity
5-95% non-condensing CERTIFICATIONS
Certifications
Tested to UL/CAN 60950-1 (USA, Canada), NOM (Mexico), FCC Class A (Emissions), ROHS Compliant, TAA Compliant Item Dimension (L"xW"xH")
7 x 10 x 76

Weight
39 lbs

Warranty Information
2-year limited warranty
