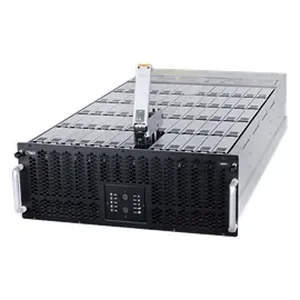

The Quanta Computer 1JB9ZZZ0STK is a Quanta JB4602 4U JBOD chassis capable of holding up to 60 hot-pluggable 3.5" and 2.5" SASIII and SATAIII hard drives. It includes a 1400W redundant power supply.
| Form Factor | 4U Chassis |
|---|---|
| Controller Module | (2) Hot-swappable SAS Interface Modules (SIM) and (4) Hot-swappable Internal SAS Interface Modules (ISIM) |
| External I/O Ports | (4) 12Gb/s mini-SAS HD ports per SIM |
| Storage | Supports (60) hot-pluggable hard drives (3.5" and 2.5" SASIII and SATAIII) |
| Management Port | (1) Mini USB management port and (1) RJ45 remote console |
| Expansion Support | Scalable up to (120) hard drives in cascading (1) JB4602 |
| Power Supply | (2) 1400W high efficiency redundant PSUs (200-240VAC, 50/60Hz); (2) 1200W high efficiency redundant PSUs (100-240VAC) to support specific HDD configurations |
| Fan | (4) Fan modules per system with two rotors in each module |
| LED Indicators | Front panel indicators for System ID, HDD status, System status, and more |
| Item Dimensions | 36" x 18" x 7" (L x W x H) |
| Weight | 80 lb |
| Warranty | 1 Year |
