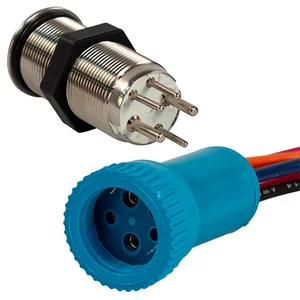

9057-2113-4 - Bluewater 19mm Momentary Push Button Switch - LED Indicator

19mm Momentary Push Button Switch - LED Indicator

Upgrade your dashboard with this premium 19mm push button switch featuring momentary contact functionality. This stylish switch is designed with a durable stainless-steel finish and comes with a waterproof rating of IP69K, ensuring reliability in various conditions.

The switch offers easy visibility with its blue LED backlight and switches to red when activated, clearly indicating the on/off status. Perfect for various applications, this switch includes a convenient 4-foot lead for versatile installation.

Specifications:

• Function: Off-(On) (momentary contact)
• Off/On LED Colors: Blue/Red
• Indicator Mark: Green Dot
• Switch Rating: 15A/12 - 24VDC
• Material: Stainless Steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

Create a 19mm hole in any material up to 6mm thick. Connect the three contacts for the button (color-coded), and then connect the two contacts for the LED lights.

The BlueWater 19mm Momentary Push Button Switch, part number 9057-2113-4, is an industrial-grade component designed for integration into control panels and dashboards. This switch features a momentary contact function (Off-(On)) and is constructed from stainless steel, providing durability and an IP69K waterproof rating. It incorporates a blue LED backlight for general visibility, which changes to red when the switch is activated, clearly indicating its operational status. Rated for 15A at 12-24VDC, this switch is suitable for applications requiring robust and reliable momentary control. Installation is facilitated by a 4-foot lead and color-coded contacts, requiring a 19mm mounting hole in material up to 6mm thick. It offers a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, addressing the need for a durable and visually clear control interface in demanding environments.
