Technical Specifications

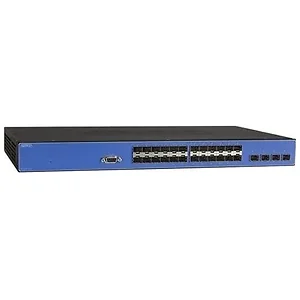

28PT SFP BASED LAYER 3 GETH SWCH NetVanta 1544F is a managed, 28-port, Layer 3, Gigabit Ethernet switch designed as an access layer or network backbone switch for small to medium-sized businesses. With the combination of the advanced multi-layer switching fabric, high-bandwidth capabilities, and enhanced Quality of Service(QoS) features, the NetVanta 1544F is ideal as an aggregation switch for high-bandwidth Voice over IP (VoIP), and converged voice and data networks. The NetVanta 1544F rackmount switch provides 28 Gigabit Ethernet ports, consisting of 24 standard 1 Gbps Small Form-factor Pluggable (SFP) Ethernet ports and four enhanced 2.5 Gbps SFP ports. The enhanced SFP ports support standard 1 Gbps up to\.5 Gbps data rates. Together the four enhanced SFP ports can provide up to 20 Gbps of bi-directional bandwidth between interconnected NetVanta 1544 switches. Product Description ADTRAN NetVanta 1544F - switch Device Type Switch Form Factor External - 1U Dimensions (WxDxH) 17.2 in x 9.3 in x 1.7 in Weight 6 lbs Data Transfer Rate 1 Gbps Empty Slots 28 x SFP (mini-GBIC) Remote Management Protocol Telnet, SNMP 3, HTTP, SSH Features DHCP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, port mirroring, DiffServ support, E-mail alert, Weighted Round Robin (WRR) queuing, Access Point operational mode, Quality of Service (QoS) Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE♊.3ad (LACP), IEEE♊.1w, IEEE 802.1x, IEEE 802.1ab (LLDP) Power AC 120/230 V ( 50/60 Hz ) Manufacturer Warranty Limited lifetime warranty General Device Type Switch Enclosure Type External - 1U Width 17.2 in Depth 9.3 in Height 1.7 in Weight 6 lbs Networking Data Transfer Rate 1 Gbps Routing Protocol OSPF, RIP-1, RIP-2, BGP, VRRP Remote Management Protocol Telnet, SNMP 3, HTTP, SSH Connectivity Technology Wired Switching Protocol Ethernet MAC Address Table Size 16K entries Status Indicators Link activity, power Features DHCP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, port mirroring, DiffServ support, E-mail alert, Weighted Round Robin (WRR) queuing, Access Point operational mode, Quality of Service (QoS) Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE♊.3ad (LACP), IEEE♊.1w, IEEE 802.1x, IEEE 802.1ab (LLDP) Expansion / Connectivity Expansion Slots Total (Free)Π ( 28 ) x SFP (mini-GBIC) 1 ([ ) x CompactFlash Card Interfaces 1 x management - RS-232 - 9 pin D-Sub (DB-9) Miscellaneous Authentication Method RADIUS, TACACS+ Compliant Standards CE, CSA, C-Tick, UL 1950, RoHS, FCC Part 15 A Power Power Device Power supply - internal Voltage Required AC 120/230 V ( 50/60 Hz ) Power Consumption Operational 80 Watt Manufacturer Warranty Service & Support Limited lifetime warranty Service ATDZUID
