165T-PM542LM - Furuno Pocket Mount 2kW CHIRP Transducer

Furuno 165T-PM542LM High-Power Pocket Mount Combination Transducer

• DFF3D operating frequency 165 kHz
• Built-in motion sensor
• Built in temp sensor
• Low—CHIRPS from 30 kHz to 60 kHz, Beamwidth 19° to 10° (10° to 5° fore-aft)
• Medium—CHIRPS from 80 kHz to 130 kHz, Beamwidth 13° to 8°

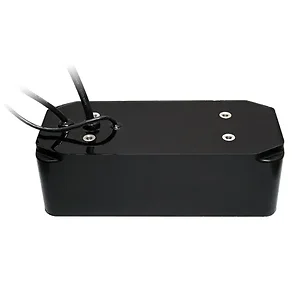

• All of these elements are built into an Airmar PM542 Urethane housing
• 12M Cables. Two cables for Low & Medium CHIRP, 7 pin connector and a pigtail cable for the DFF3D

Pocket Mount Combo Transducer Low/Medium TruEcho CHIRP for FCV1900/FCV1900B (30-60 kHz and 80-130 kHz), DI-FFAMP, and DFF3D Multi-Beam Sonar (165 kHz) only

The Furuno 165T-PM542LM is a high-power pocket mount combination transducer designed for marine IT and commercial fishing applications. This unit integrates Low and Medium TruEcho CHIRP capabilities, operating across 30-60 kHz and 80-130 kHz ranges, respectively. It also supports DFF3D Multi-Beam Sonar at 165 kHz. The transducer is housed in an Airmar PM542 Urethane casing and includes built-in motion and temperature sensors. It is suitable for vessels requiring detailed underwater imaging and target discrimination, particularly when paired with compatible Furuno systems. The 165T-PM542LM addresses the need for a robust, multi-frequency transducer solution that provides data for navigation, fish finding, and seabed mapping, making it a practical choice for professional maritime operations.
