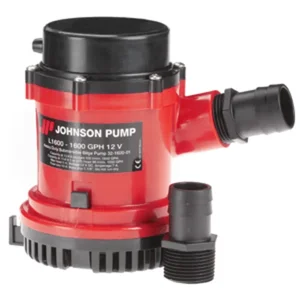

16004-00 - Johnson Pump 1600 GPH Bilge Pump 1/8" Hose 12V

• Heavy duty, 12-pole double ball bearing motor

• Liquid cooled for extended motor life

• Quality engineered mechanical/lip seal

• ISO 8849 Marine and CE standards

• Easily interchangeable with most similar bilge pumps

• Pump body: Thermoplastic

• Shaft seal: Mechanical seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V

• Capacity 1.0 m head (13.6 V/27 V): 98 l/min - 1550 GPH

• Capacity straight (13.6 V/27 V): 100 l/min - 1600 GPH

• Amperage: 7 A

• Fuse Size: 10 A

• Connection: 1-1/8" and 1-1/4"

• Shaft: SS2343

• Wire size: 1.3 mm2 - 16 GA

• Max height 149 mm - 5.86"

• Weight 1.3 kg - 2.75 lbs

The Johnson Pump 1600 GPH Bilge Pump is a 12V heavy-duty pump designed for both commercial and recreational marine applications. It provides a straight capacity of 1600 gallons per hour (GPH) and 1550 GPH at a 1.0m head, making it suitable for managing water accumulation in bilges. This unit features a liquid-cooled, 12-pole motor with double ball bearings, engineered for extended service life under demanding conditions. The 1600 model utilizes a lip seal for shaft sealing, and its impeller is designed for efficient head and flow maximization. Constructed with a thermoplastic pump body and a stainless steel (SS2343) shaft, it is built to meet ISO 8849 Marine and CE standards. The pump offers connection options for 1-1/8" and 1-1/4" hoses, and its universal base plate facilitates straightforward installation. Part number 16004-00 is an appropriate choice for IT and facilities managers requiring reliable water removal solutions in marine environments.
