Product Information
- Part Number: CD14126CL-O9130
- Brand: Ventev
- Product Type: Network Device Enclosure with Integrated Antenna
- Antenna Type: Integrated 2.4/5GHz 6dBi Omnidirectional Antenna
- Antenna Connector: 8-PORT Dart Connector
- Enclosure Material: Polycarbonate
- Door Type: Clear Door with Latch Locks
- NEMA Rating: NEMA 4X
- Indoor/Outdoor: Indoor and Outdoor
- Compatible with: Cisco 9130AXE Access Points (and other compatible wireless equipment)
- Compliance: RoHS Compliant
- Warranty: 2 Year Limited Warranty (TerraNet warranty program)
Product Description

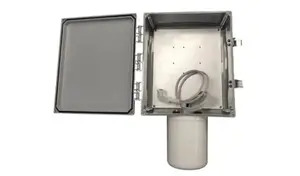

The Ventev CD14126CL-O9130 is a 14"x12"x6" NEMA 4X polycarbonate enclosure featuring a clear door with latch locks and a factory-integrated 2.4/5GHz 6dBi omnidirectional antenna with an 8-PORT Dart Connector. This plug-and-play solution is designed for rapid deployment, significantly reducing installation time and costs. Constructed from rugged, polycarbonate material with a NEMA 4X rating, it provides robust protection for wireless equipment from harsh weather conditions, tampering, and theft, making it suitable for both indoor and outdoor environments. The clear door allows for visual inspection of internal equipment, and the integrated antenna simplifies installation by combining two components into one. It is specifically designed to work seamlessly with Cisco 9130AXE access points.
Product Specifications
- Dimensions (External): 14" L x 12" W x 6" H (Enclosure only)
- Dimensions (Total Enclosure and Antenna): Approximately 22" L x 13" W x 7" H (based on similar models/documents)
- Weight: 8 lbs (product weight), 10 lbs (shipped weight)
- Material: Polycarbonate (Enclosure), Aluminum (Backplate)
- Door Type: Clear, Latch Lock
- NEMA Rating: NEMA Type 4X
- Antenna Frequency Range: 2400-2500 MHz / 5150-5850 MHz
- Antenna Gain: 6 dBi
- Antenna Polarization: Vertical
- Antenna VSWR: <=2.0 / <=2.2
- Antenna Input Power: 10W
- Antenna Ports: 8
- Antenna Connector Type: DART
- Antenna Cable: 30" LMR-100
- Antenna Radome Color: White
- Antenna Dimensions: 5.9" x 7"
- Antenna Weight: 2.86 lbs
- Antenna Environment: Indoor / Outdoor
- Antenna Ingress Protection: IP 54 Compliant
- Operating Temperature (Antenna): -40? to +158?F (-40? to +70?C)
- Wind Rating (Antenna): 134 mph max.
- Features: ['8-port DART connector', 'Latch lock', 'Plug and Play', 'Cord Grip Hole (Cord Grip Included)']
- Mounting: ['Wall mountable (Wall Mount Included)', 'Pole mountable (Pole Mounting Kit sold separately)']
Product may differ from image shown
