149-0346-FT - Trident Marine Trident 3/4" VAC XHD Bilge & Live Well Hose - Black

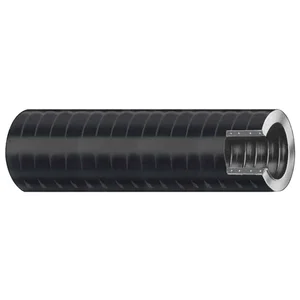

Trident 3/4" VAC XHD Bilge & Live Well Hose - Black

This high-quality Trident VAC XHD hose is designed for bilge and live well applications, featuring a hard PVC helix for exceptional flexibility and durability. The smooth outer surface simplifies clamping, while the excellent bend radius allows for easy installation, mimicking the flexibility of rubber hoses.

Key Features:

• Sold by the foot
• Exceptional flexibility for easy maneuverability
• Durable hard PVC construction

Applications:

• Ideal for bilge and live well systems

Specifications:

• Tube & Cover: Hard PVC helix
• Color: Black
• Reinforcement: PVC Helix
• Temperature Range: 10�F-120�F (-12�C-48�C)
• Inner Diameter: (inch) 3/4" / (mm) 19.1
• Outer Diameter: (inch) .986" / (mm) 25
• Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
• Weight: (Lb./ 50 ft.) 11 / (Kg/m) 4.99
• Bend Radius: (inch) 3" / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

The Trident 3/4" VAC XHD Bilge & Live Well Hose, part number 149-0346-FT, is engineered for marine bilge and live well systems. This hose features a hard PVC helix construction, providing a balance of flexibility and durability for demanding applications. Its design allows for a 3-inch bend radius, facilitating installation in confined spaces, similar to the maneuverability of rubber hoses. The smooth outer surface is intended to simplify the clamping process. With an inner diameter of 3/4 inch (19.1 mm) and an outer diameter of .986 inch (25 mm), it is suitable for systems requiring these dimensions. The hose operates within a temperature range of 10�F to 120�F (-12�C to 48�C) and can handle a working pressure of 28 Psi Vac In./Hg (1.93 Bar). It is sold by the foot, allowing for custom length procurement based on specific project requirements.
