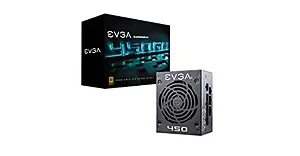

The SuperNOVA 450 GM 450W 80 Plus Gold Modular SFX Power Supply from EVGA is built for performance, durability, and efficiency. Its fully modular design lets you connect the cables you need and store the rest. With less cables, there'll be less clutter resulting in improved airflow and lower temperatures. The SuperNOVA GM is built with a single +12 V rail, Japanese-grade capacitors, and a quiet 92mm fan that delivers efficient cooling at low noise levels. It comes with a SFX to ATX bracket adapter, and features heavy-duty protections to protect your system from damage.
Technical Specifications
CABLE LENGTH ATX CABLE 1x 300mm (m) EPS CABLE 1x 400mm (m) PCIE CABLE 1x 400mm, 510mm (m) SATA CABLE 1x 300mm, 410mm, 520mm, 630mm (m) FOUR-PIN PERIPHERAL CABLE 1x 300mm, 410mm, 520mm, 630mm (m) FLOPPY ADAPTER 1x 100mm (m) AC POWER 1x 1500mm (m) MODULAR CABLE TYPE Full MOLEX TO FDD 1x CONNECTOR QUANTITY 24 PIN ATX 1x EPS (CPU) 1x 8pin (4+4) PCIE 2x 8pin (6+2) SATA 4x FOUR-PIN PERIPHERAL 4x FLOPPY 1x POWER SPECS AC Input 100-240 VAC, 6.5 - 3A, 50 - 60 Hz Rail +3.3V Max Output 20A 100W Rail +5V Max Output 20A 100W Rail +12V Max Output 37.5A 450W 450W Rail +5Vsb Max Output 2.5A 12.5W Rail -12V Max Output 0.3A 3.6W Total 450W at 40oC ADDITIONAL DETAILS OPERATING TEMPERATURE 0o to 40o C JAPANESE CAPACITORS 100% on Main PCB ECO MODE Auto MTBF 100,000 Hours APPROVALS TUV, CB, CE, FCC, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement FAN SIZE / BEARING 92mm Double Ball Bearing Item Dimension (L"xW"xH") 11 x 4 x 8 Weight 3.30 LB
