Product Overview

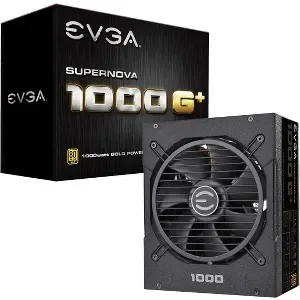

The EVGA SuperNOVA G1+ Power Supplies have arrived. Launched in May 2014, the EVGA SuperNOVA G1 power supplies have been among the longest-lasting and best-performing power supplies on the market. Despite only a few changes over the years, it's only fitting that these are due for an upgrade. Enter the G1+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating. Compared to the EVGA SuperNOVA G1 power supplies, the G1+ are up to 20mm shorter, feature 100% Japanese capacitors, are up to 20% quieter, have much tighter 12v. load regulation, and have a superior fluid-dynamic bearing fan. Combining a full set of current, voltage, and temperature protections with EVGA's World Leading 10-Year Warranty, the EVGA SuperNOVA G1+ power supplies set the new Gold standard for performance and value.
Technical Specifications
The EVGA SuperNOVA G1+ Power Supplies have arrived. Launched in May 2014, the EVGA SuperNOVA G1 power supplies have been among the longest-lasting and best-performing power supplies on the market. Despite only a few changes over the years, it's only fitting that these are due for an upgrade. Enter the G1+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating.
Compared to the EVGA SuperNOVA G1 power supplies, the G1+ are up to 20mm shorter, feature 100% Japanese capacitors, are up to 20% quieter, have much tighter 12v. load regulation, and have a superior fluiddynamic bearing fan. Combining a full set of current, voltage, and temperature protections with EVGA's World Leading 10-Year Warranty, the EVGA SuperNOVA G1+ power supplies set the new Gold standard for performance and value.
FEATURES
80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
Fully Modular to reduce clutter and improve airflow
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
100% Japanese Capacitors ensure long-term reliability
Whisper Silent with 135mm Fluid Dynamic Bearing Fan
CABLE LENGTH
ATX Cable: 1x 600mm (m)
EPS Cable: 2x 650mm (m)
PCIE Cable: 4x 650mm (m), 2x650mm, 750mm(m)
SATA Cable: 4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable: 2x 550mm, 650mm, 750mm (m)
Floppy Adapter: 1x Molex to FDD Adapter
AC Power: 1x 1500mm (m)
Modular Cable Type: Full
CONNECTOR QUANTITY
24 Pin ATX: 1x
EPS (CPU): 2x8pin(4+4)
PCIE: 8x8pin(6+2)
SATA: 12x
Four-Pin Peripheral: 6x
Floppy: 2x
INPUT
Input Voltage: 100-240 VAC
AC Input: 15-8A
Input Frequency Range: 50 - 60 Hz
Efficiency: 90% or Higher Typical
OUTPUT
Rail/Max output:
+3.3V: 24A/120W
+5V: 24A/ 120W
+12V: 83.3A/999.6W
+5Vsb: 3.0A/15W
-12V: 0.5A/6W
Total: 1000W at 50oC
ADDITIONAL DETAILS
Operating Temperature: 0o to 50oC
Japanese Capacitors: 100%
ECO Mode: No
MTBF: 100,000 Hours
Approvals:
- TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
- Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing: 135mm Fluid Dynamic Bearing
Item Dimension ( L inch x W inch x H inch)
13 x 11 x 5
Weight
8.00 lb
Warranty Information
10 Years
