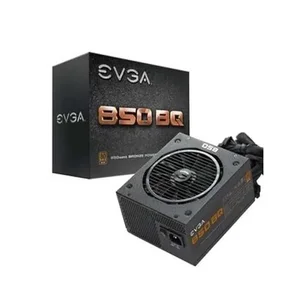

Evga 110-BQ-0850-V1 850 BQ, 80+ BRONZE 850W, Semi Modular, 5 Year Warranty, Power Supply 110-BQ-0850-V1

Specifications

• Mfr Part Number: 110-BQ-0850-V1
• Features:
  • 5 Year Warranty and unparalleled EVGA Customer Support
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • Quiet and Intelligent Auto Fan for near-silent operation
• Maximum Power: 850 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 12 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Power Factor Correction: Active PFC
• Efficiency: 85% Typical
• MTBF: 100,000 hours
• Fan: 140mm Teflon Nano-Steel Bearing
• Output: +3.3V @ 24A, +5V @ 20A, +12V @ 70A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connectors, 3x 8pin (6+2) PCI-Express Connectors, 10x SATA Connectors, 5x 4pin Peripheral Connectors, 1x Floppy Connectors
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHSCompliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
• Weight: 7.0 lbs
