Product Overview

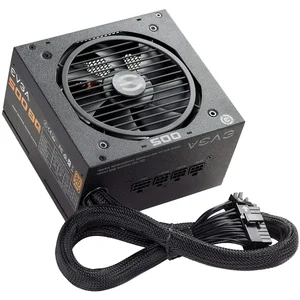

Introducing the next generation in value; The EVGA BQ series. These power supplies take some of the best features from EVGA award winning power supply lineup, like near silent operation and modular cables To make one of the best values today in high performance power supplies.
Technical Specifications
<p><b>Specifications</b></p><ul><li><strong>Mfr Part Number: </strong>110-BQ-0500-K1</li><li><strong>Features:</strong><ul><li>Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)</li><li>Quiet and Intelligent Auto Fan for near-silent operation</li><li>3 Year Warranty</li></ul></li><li><strong>Maximum Power:</strong> 500 W</li><li><strong>Input:</strong><ul><li><strong>Voltage:</strong> 100 ~ 240 VAC</li><li><strong>Current:</strong> 8 - 4A</li><li><strong>Frequency Range: </strong>50 ~ 60 Hz</li></ul></li><li><strong>Type: </strong>N/A</li><li><strong>Efficiency:</strong> 85% Typical</li><li><strong>MTBF:</strong> 100,000 Hours</li><li><strong>Fan: </strong>1x 120mm Fluid Dynamic Bearing Fan</li><li><strong>Output: </strong>+3.3V @ 20A, +5V @ 20A, +12V @ 41.6A, +5VSB @ 2.5A, -12V @ 0.3A</li><li><strong>Connectors: </strong>1x 24pin ATX Connector, 1x 8pin (4+4) EPS(CPU) Power Connector, 2x 8pin (6+2) PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector</li><li><strong>Approvals:</strong> TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement</li><li><strong>Dimensions (WxLxH):</strong> 150.0 x 140.0 x 85.0 mm</li><li><strong>Weight:</strong> 5.0 lbs</li></ul>
