0590DPGCHR - Perko 0590 Vented Fill f/1/2" Hose - Angled Neck - Chrome

0590 Vented Fill f/1-1/2" Hose - Angled Neck - Chrome

• Chrome Plated Bronze Cap
  • Black Polymer Body
  • Stainless Steel Bead Chain
  • Integral Tank Vent with Flame Arrestor and Anti Surge Valve (on diesel only)
  • Deck Plate Key Not Required
  • *Note: Consider using the Mounting Ring (Fig. 0540DPRBLK) for all installations. DP package includes mounting ring.

Technical Information

• For Hose Size: 1-1/2"
• For Vent Hose: 5/8"
• Mounting Hole Dia.: 2-1/8"
• O.D. Flange: 3-3/8"
• Neck Length: 2-7/16"
• Screw Size: #8

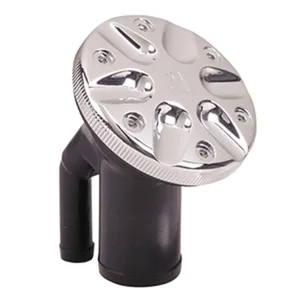

The Perko 0590 Vented Fill with Angled Neck is designed for fluid transfer applications requiring a 1-1/2" fill hose. This unit, part number 0590DPGCHR, features a chrome-plated bronze cap, a black polymer body, and a stainless steel bead chain for cap retention. It integrates a tank vent with a flame arrestor and an anti-surge valve, which is active specifically for diesel installations.

This vented fill is suitable for marine or industrial environments where secure and compliant fluid transfer is necessary. It eliminates the need for a deck plate key, simplifying operation. The DP package includes a mounting ring (Fig. 0540DPRBLK) to facilitate installation. It is intended for systems with a 1-1/2" fill hose and a 5/8" vent hose, requiring a 2-1/8" mounting hole diameter. This product addresses the need for a durable and secure vented fill point in relevant systems.
