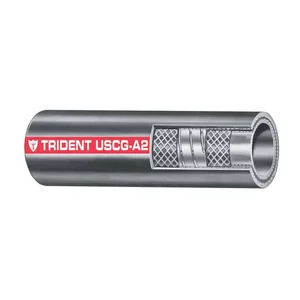

Trident Marine 327-2006-FT 2" A2 Fuel Fill Hose - Sold per Foot

Trident Marine 2" A2 Fuel Fill Hose - Sold per Foot

This premium 2" ID A2 fuel fill hose is designed for use with gasoline (including ethanol blends) and diesel (including bio diesel blends).

Key Features:

• Available for purchase by the foot
• Constructed with superior fuel, fire, and age-resistant materials
• Exceptional resistance to aging, fire, heat, cold, and ozone
• Offers excellent flexibility and bend-ability

Applications:

• Ideal for marine fuel fill and venting, as well as diesel distribution
• Compatible with all marine fuels, including gasoline, alcohol blends, diesel, and biodiesel

Construction Details:

• Tube & Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester with a dual spiral and spring steel helix
• Temperature Range: -20°F to 212°F (-20°C to 100°C)

Specifications:

• Inner Diameter: 2" (50.8 mm)
• Outer Diameter: 2.48" (63.5 mm)
• Wall Thickness: 0.25" (6.4 mm)
• Working Pressure: 50 psi (0.345 mpa)
• Bend Radius: 7.0" (178 mm)

*This product exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840 standards, and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved.
