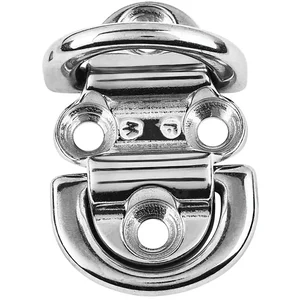

8mm Double Folding Pad Eye - Ideal for Nautical Applications
Features:
- Constructed from fully drop forged 316L stainless steel for exceptional strength.
- Designed to efficiently attach blocks, stays, and jib tack points.
- Capable of connecting multiple shrouds safely.
- Modern design complements the aesthetics of contemporary boats.
- Folds down to minimize injury risks while in use.
- Equipped with a silicon pad to reduce noise and vibrations.
Applications:
- Suitable for various fastening and attachment needs.
- Allows for secure attachment of multiple stays.
Specifications:
- Working load: 5290 lb (2400 kg).
- Breaking load: 9470 lb (4300 kg).
- Weight: 0.556 lb (252 g).
Dimensions:
- A: 2 21/64" (59 mm)
- B: 1 3/8" (35 mm)
- C: 43/64" (17 mm)
- d diameter: 21/64" (8.5 mm)
- D diameter: 5/16" (8 mm)
- E: 3 3/16" (81 mm)
- F: 2 21/64" (59 mm)
Caption:
- Working Load (WL) is for nautical applications.
- Working Load Limit (WLL) is based on industrial applications with a safety factor of 5 times the breaking load (WLL = Breaking load / 5).
*Sold as an Individual
