Wichard Marine 01404 Wichard Captive Pin D Shackle - Diameter 8mm - 5/16"

Captive Pin D Shackle - Diameter 8mm - 5/16"

Features:

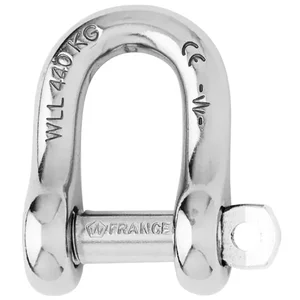

• Captive pin "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1580
• Breaking load (lb) 7930
• Weight (lb) 0.134

Dimensions (see 2nd image):

• A (inch) 1-1/32"
• B (inch) 5/8"
• C (inch) 23/64"
• D (inch) 45/64"
• D diameter (inch) 5/16"
• E (inch) 5/16"
• F (inch) 1-27/32"
• G (inch) 1-21/32"
