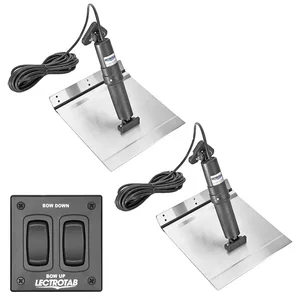

Lectrotab XKAF9X9A Aluminum Trim Tabs with Rocker Switch - 9"x9"

Lectrotab Aluminum Trim Tabs with Rocker Switch - 9" x 9"

The Lectrotab Aluminum Trim Tabs are engineered for aluminum hulled boats, providing a cost-effective solution for improved performance on all boats. These tabs are crafted with a robust "no-break" polypropylene hinge and are coated with a corrosion-resistant epoxy for long-lasting durability.

Coupled with a precision actuator, this kit ensures a quiet, non-hydraulic, maintenance-free operation. The self-contained design allows for straightforward installation without needing to place components inside the boat. Unlike hydraulic systems, there are no oils to leak, making this a hygienic option for any vessel. The actuator assembly comes with a non-metallic, permanently sealed housing for enhanced reliability.

The new flat rocker switch features improved sealing to prevent water ingress, along with a recessed design to avoid breakage. An instant stop function is included to prevent actuator over-run, ensuring safety and efficiency.

Key Specifications:

• Trim Tab Size: 9" x 9" (23 x 23 cm)
• Suitable Boat Length: 14' to 19' (4 to 6 M)
• Material: Marine grade 6005-T5 Aluminum Alloy
• DC Voltage: 12 V
• Stroke Length: 2.25" (57 mm)
• Cable Length: 23' (7 M)
• Actuator Height: 11.875" (302 mm)
• Rocker Switch Dimensions: 3.125" x 3.25" (79.4 x 82.5 mm)
• Mounting Hole Cutout: 2.25" x 2" (57.5 x 50 mm)
• Operating Voltage for Switch: 12 or 24 V

Included in the Kit:

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit
