Product Overview

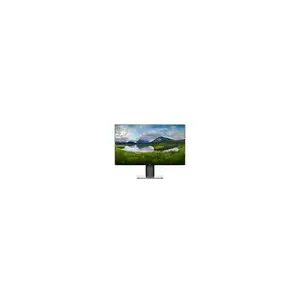

Experience an immersive viewing experience that covers for 99% of the sRGB and Rec. 709 color gamuts, as well 85% of the DCI-P3 color gamut in a thin design with the U2419HX UltraSharp 24" 16:9 IPS Monitor from Dell. This display features a native resolution of 1920 x 1080 with a 60 Hz refresh rate, In-Plane Switching (IPS) technology, support for 16.7 million colors, an average calibration accuracy of Delta E < 2, a 16:9 aspect ratio, an anti-glare coating with a 3H hardness rating, a static contrast ratio of 1000:1, a typical brightness level of 250 cd/m2, an 8 ms response time in normal mode, and a 5 ms response time in fast mode. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. Dell's U2419HX has DisplayPort 1.4 and HDMI 1.4 inputs that both support HDCP 1.4, a DisplayPort output with HDCP 1.4 for connecting an MST (multi-stream transport) display, four USB 3.0 Type-A ports, two of which support battery charging via the BC 1.2 spec up to 2A, and a USB 3.0 Type-B port for connecting it to your host system. If you'd like to output audio, there is a 3.5mm line out jack to connect speakers and play back audio coming through the HDMI or DisplayPort audio channels. To further help improve viewing and accessibility, this display features a tilt of -5 to 21°, a swivel of -40 to 40°, and a height adjustment of 5.1", and a 100 x 100mm VESA mount.
Technical Specifications
Screen type
Active matrix - TFT LCD
Panel Type
In-plane switching Technology
Aspect ratio
16:9
Viewable image dimensions
Diagonal
60.47 cm (23.8 inches)
Active Area
Horizontal
527.04 mm (20.75 inches)
Vertical
296.46 mm (11.67 inches)
Area
156246.3 mm2(242.15 inches2)
Pixel pitch
0.2745 mm x 0.2745 mm
Pixel per inch (PPI)
92.5
Viewing angle
Horizontal
178o (typical)
Vertical
178o (typical)
Brightness
250 cd/m2 (typical)
Contrast ratio
1000 to 1 (typical)
Display screen coating
Anti-glare treatment of the front polarizer (3H) hard coating
Backlight
LED
Response Time (Grayto Gray)
5 ms (FAST mode)
8 ms (NORMAL mode)
Color depth
16.7 million colors
Color gamut
99% sRGB
99% REC709
85% DCI-P3
( At panel native only, under Custom Mode preset.)
Calibration accuracy
Delta E < 2 (average)
Connectivity
1 x DP 1.4 (HDCP 1.4)
1 x DP (out) with MST (HDCP 1.4)
1 x HDMI 1.4 (HDCP 1.4)
2 x USB 3.0 downstream port
2 x USB 3.0 with BC1.2charging capability at 2A (max)
1 x USB 3.0 upstream port
1 x Analog 2.0 audio line out(3.5mm jack)
Border width (edge of monitor to active area)
5.0 mm (Top)
5.1 mm (Left/Right)
8.0 mm (Bottom)
Adjustability
Height adjustable stand
130 mm
Tilt
-5o to 21o
Swivel
-40o to 40o
Cable management
Yes
Dell Display Manager (DDM) Compatibility
Easy Arrange and other key features
Security
Security lock slot (cable lock sold separately) Anti-theft stand lock slot (to panel)
Resolution Specifications
Horizontal scan range
30 khz to 83khz
Vertical scan range
56 Hz to 76 Hz
Maximum preset resolution
1920 x 1080 at 60 Hz
Video display capabilities (DP and HDMI playback)
480i, 480p, 576i, 576p, 720p,1080i, 1080p
MST Source Monitor
Maximum number of external monitors that can be supported.
1920 x 1080/60 Hz
1920 x 1080/60 Hz
3
(NOTE: Maximum external monitor resolution supported is 1920 x 1080 60Hz only.)
Electrical Specifications
Video input signals
Digital video signal for each differential line Per differential line at 100 ohm impedance
DP/HDMI signal input support
Input voltage/ frequency/current
100-240 VAC / 50 or 60 Hz 3 Hz / 1.6 A (maximum)
Inrush current
120 V: 30 A (Max.)
240 V: 60 A (Max.)
Connector type
DP connector (include DP in and DP out)
HDMI connector
Audio line-out
USB 3.0 upstream port connector
USB 3.0 downstream portconnector x 4
(Port with battery icon supports BC 1.2.)
Signal cable type
DP to DP 1.8 M cable
(U2419H/U2719D)
HDMI 1.8 M cable
(U2419HX/U2719DX)
USB 3.0 1.8 M cable
Environmental Characteristics
Compliant Standards
ENERGY STAR certified Monitor
EPEAT Gold registered in the U.S. EPEAT registration varies by country.
TCO Certified Display
RoHS Compliant
BFR/PVC Free monitor (excluding external cables)
Meets NFPA 99 leakage current requirements
Arsenic-Free glass and Mercury-Free for the panel only
Temperature
Operating
0oC to 40oC (32oF to 104oF)
Non-operating
20oC to 60oC (4oF to 140oF)
Humidity
Operating
10% to 80% (non-condensing)
Non-operating
5% to 90% (non-condensing)
Altitude
Operating
5,000 m (16,404 ft) (maximum)
Non-operating
12,192 m (40,000 ft) (maximum)
Thermal dissipation
232.03 BTU/hour (maximum)
58.02 BTU/hour (typical)
Item Dimension (L"xW"xH")
24 x 7 x 15
Weight
19.00 LB
Warranty Information
3 yr Advance Exchange and Limited Hardware Warranty
