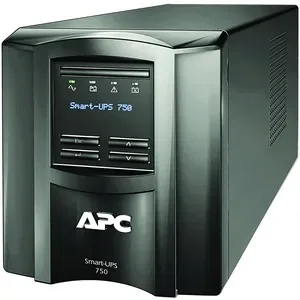

Apc - Schneider Electric SMT750C APC Smart UPS, SMT750C, 750VA, LCD 120V, with SmartConnect

Output
Output power capacity:500Watts / 750VA
Max Configurable Power (Watts):500Watts / 750VA
Nominal Output Voltage:120V
Output Voltage Distortion:Less than 5%
Output Frequency (sync to mains):50/60Hz +/- 3 Hz
Other Output Voltages:110, 127
Topology:Line Interactive
Waveform type:Sine wave
Output Connections:(6) NEMA 5-15R (Battery Backup)
Transfer Time:6ms typical : 10ms maximum
Input
Nominal Input Voltage:120V
Input frequency:50/60 Hz +/- 3 Hz (auto sensing)
Input Connections:NEMA 5-15P
Cord Length:6ft ( 1.83meters )
Input voltage range for main operations:82 - 144V
Input voltage adjustable range for mains operation:75 - 154V
Number of Power Cords:1
Other Input Voltages:110, 127
Batteries and Runtime
Battery type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time:3hour(s)
Replacement Battery:RBC48
Expected Battery Life (years):3 - 5
RBC Quantity:1
Runtime:View Runtime Graph
View Runtime Chart
Efficiency:View Efficiency Graph
Communications and Management
Interface Port(s):SmartSlot , USB
Control panel:Multi-function LCD status and control console
Audible Alarm:Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO):--
Available SmartSlotTM Interface Quantity:1
Surge Protection and Filtering
Surge energy rating:540Joules
Filtering:Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Color:Black
Environmental
Operating Temperature:32 - 104 oF ( 0 - 40 oC )
Operating Relative Humidity:0 - 95 %
Operating Elevation:0-10000ft ( 0-3000meters )
Storage Temperature:-15 - 45 oC
Storage Relative Humidity:0 - 95 %
Storage Elevation:0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit:41.0dBA
Online thermal dissipation:90.0BTU/hr
Conformance
Approvals:CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
Equipment protection policy:Lifetime : 150000
Standard warranty:3 years repair or replace (excluding battery) and 2 year for battery
Sustainable Offer Status
RoHS:Compliant
REACH:REACH: Contains No SVHCs
Item Dimension (L inchxW inchxH inch)
11 x 12 x 20 Weight
30.91lb Warranty Information
3 years repair or replace (excluding battery) and 2 year for battery
