General Information
Manufacturer:Eaton Corporation
Manufacturer Part Number:INTERNET900U
Manufacturer Website Address:http://www.eaton.com
Brand Name:Tripp Lite by Eaton
Product Line:Internet Office
Product Model:INTERNET900U

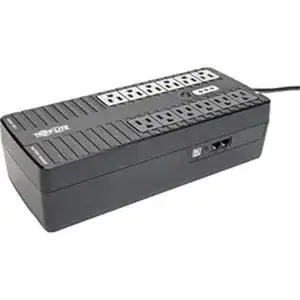

Product Name:INTERNET900U 900VA Ultra-compact Desktop/Tower/Wall Mount UPS
Marketing Information:UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. 12 widely spaced output receptacles in a compact, mountable housing accommodate large transformer plugs without blocking outlets. Six outlets provide full battery support and surge suppression. Six additional surge suppression-only outlets are ideal for accessories not requiring battery support. Single-line telephone suppression jacks protect directly connected modems, fax machines, cordless phones or other peripherals sharing a standard dialup or DSL phone line connection. USB communications interface with PowerAlert monitoring software (via web download) and cabling allows a safe, unattended system shutdown. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 900VA/480W power handling ability supports entry-level PCs for up to 45 minutes during power failures.
Packaged Quantity:1 Each
Product Type:Standby UPS
Technical Information
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:6 x NEMA 5-15R
Number of Surge-only Outlets:3
Dataline Protection:RJ-11
Protection Type:
Overload Protection:Yes
Transfer Time:6 ms
Phase:Single Phase
Application/Usage:
- Home/Office
- Computer
- Router
- Audio Receiver
- DVR
- Printer
- Media Player
- HDTV
- Blu-ray Player
Power Description
Load Capacity (VA):900 VA
Load Capacity (Watt):480 W
Input Voltage:120 V AC
Output Voltage:
Output Frequency:60 Hz
Waveform Type:Pure Sine Wave
Surge Energy Rating:316 J
Output Power Factor:0.53
Management
Alarm:
- Overload
- UPS Fault
- Low Battery
Interfaces/Ports
USB:Yes
USB (HID Compliant) Port:Yes
Battery Information
DC System Voltage:12 V DC
Battery Characteristics:Valve-regulated
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):1.70 Minute
Backup/Run Time (Half Load):7.80 Minute
Typical Battery Recharge Time:8 Hour
Replaceable Battery:Yes
Environmental Conditions
Minimum Operating Temperature:32°F (0°C)
Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:9842.52 ft
Physical Characteristics
Color Family:Black
Product Color:Black
Height:3.4"
Width:5.1"
Depth:12.2"
Form Factor:Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):8.10 lb
Miscellaneous
Package Contents:
INTERNET900U 900VA Ultra-compact Desktop/Tower/Wall Mount UPS USB Cable Owner's ManualAdditional Information:
- Appearance: Attractive black ultra-compact housing
Output voltage regulation:
- Line Mode: Passes sine wave line voltage from 98-139V to connected equipment unchanged
- Battery Mode: PWM sine wave output 115V +/-5%
Output frequency regulation:
- Line Mode: Passes line frequency of 60Hz +/-10%
- Battery Mode: Inverter output regulated to 60zHz +/-0.5Hz
Certifications & Standards:
- Energy Star
- UL Listed Certification
Software Included:PowerAlert Software
Recycled:No
Assembly Required:No
Energy Star:Yes
Country of Origin:Vietnam
Environmentally Friendly:Yes
Energy Efficiency Certification:ENERGY STAR 2.0
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:2 Year
Additional Warranty Information:
2 year and
- 100,000 connected equipment warranty
