General Information
Manufacturer:Eaton Corporation
Manufacturer Part Number:SMC15002URM
Manufacturer Website Address:http://www.eaton.com
Brand Name:Tripp Lite series
Product Line:SmartPro
Product Model:SMC15002URM

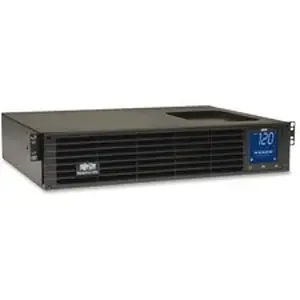

Product Name:Line-interactive UPS Power Supply
Marketing Information:Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 94 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.
Packaged Quantity:1 Each
Product Type:Line-interactive UPS
Technical Information
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:8 x NEMA 5-15R
Protection Type:
- Brownout
- Over Voltage
- Surge
- Black Out
- Under Voltage
- EMI / RFI
Emergency Power OFF:Yes
Cord Length:9.84 ft
Power Description
Load Capacity (VA):1500 VA
Load Capacity (Watt):1000 W
Input Voltage:120 V AC
Input Current:12 A
Output Voltage:120 V AC
Waveform Type:
Surge Energy Rating:570 J
Circuit Breaker:Yes
Management
Alarm:
- UPS StartUp
- Power Failure
- Low Battery
- Overload
- UPS Fault
- Remote Shutdown
Battery Management:user-replaceable
Controls/Indicators
Status Indicators:LEDs
Interfaces/Ports
Serial Port:Yes
USB:Yes
Battery Information
Backup/Run Time (Full Load):6.50 Minute
Backup/Run Time (Half Load):17.70 Minute
Hot Swappable:Yes
Environmental Conditions
Maximum Operating Temperature:104°F (40°C)
Sound Emission (A-Weighted):45 dB(A)
Thermal Dissipation:65.35 W
Physical Characteristics
Height:3.5"
Width:17.3"
Depth:13.4"
Rack Height:2U
Form Factor:Rack/Tower
Weight (Approximate):46.50 lb
Miscellaneous
Package Contents:
- SMC15002URM UPS System
- USB Cable
- 2 & 4 Post Rackmount Installation Hardware
- Instruction Manual
Certifications & Standards:
UL Listed Certification
Recycled:No
Assembly Required:No
Country of Origin:China
TAA Compliant:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:2 Year
Additional Warranty Information:
