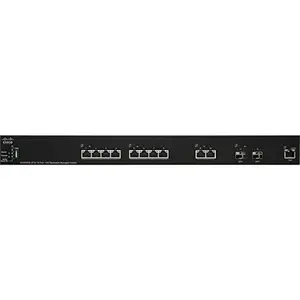

Cisco PNH-CISCO-SG350XG-2F10 PNH-Cisco SWT PNH-CISCO-SG350XG-2F10 12P 10G SFP+ Stackable Managed SWT 3Layer

Product Name
SG350XG-2F10 Capacity in Mpps (64-Byte Packets)
178.56 Switching Capacity (Gbps)
240 Power over Ethernet
The following switches support 802.3at PoE+, 802.3af PoE, and Cisco prestandard (legacy) PoE on any of the RJ45 network ports. 60W PoE is also supported on selected RJ-45 network ports. Maximum power of 60W is delivered to any of the 60W PoE ports, and maximum power of 30W is delivered to any of the other RJ45 network ports, until the PoE budget for the switch is reached. The total power available for PoE per switch is as follows. Power consumption (worst case)
Green Power (Mode):EEE, Energy Detect, Short Reach
System Power Consumption:110V84.3W220V84.6W
Power Consumption(with PoE):N/A
Heat Dissipation(BTU/hr):288.67
Ports
Total System Ports: 10 10G copper + 2 10G SFP+ plus 1 GE OOB management
Network Ports: 10 10GE
Uplink Ports: 2 10GE SFP+ (dedicated) Console port
Cisco Standard RJ45 console port OOB management port
Dedicated Gigabit management port for out-of-band management on SG350XG models USB slot
USB Type-A slot on the front panel of the switch for easy file and image management Buttons
Reset button Cabling type
Unshielded twisted pair (UTP) Category 5 or better fiber options (SMF and MMF) coaxial SFP+ LEDs
System, master, stack ID, link/speed per port Flash
256 MB CPU
800 MHz (dual-core) ARM CPU memory
512 MB Packet buffer
2 MB Supported SFP/SFP+ modules
SKU / Media / Speed / Maximum Distance
MGBSX1/Multimode fiber/1000 Mbps/500 m
MGMGBLH1/Single-mode fiber/1000 Mbps/40 km
MGBT1/UTP cat 5e/1000 Mbps/100 m
SFP-H10GB-CU1M/Copper coax/10 Gig/1 m
SFP-H10GB-CU3M/Copper coax/10 Gig/3 m
SFP-H10GB-CU5M/Copper coax/10 Gig/5 m
SFP-10G-SR/Multimode fiber/10 Gig/26 m - 400 m
SFP-10G-LR/Single-mode fiber/10 Gig/10 km
SFP-10G-SR-S/Multimode fiber/10 Gig/26 m - 400 m
SFP-10G-LR-S/Single-mode fiber/10 Gig/10 km
Power
100 - 240V 47 - 63 Hz, internal, universal Certification
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A Operating temperature
SG350XG-2F10, SG350XG-24F, SG350XG-24T, SG350XG-48T
32^o to 122^oF (0^o to 50^oC)
