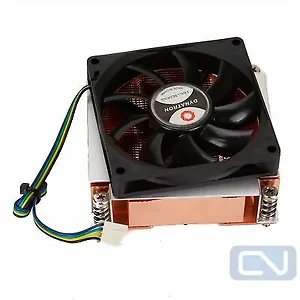

Dynatron N3 FN N3 for 1U Server and Up Fully Support CPU Powered Heat Dissipation
Out of Stock
Condition: New
$66.50$89.78
Free Shipping for this Item
Product Overview
Dynatron FN N3 for 1U Server and Up Fully Support CPU Powered Heat Dissipation
Technical Specifications
CPU Support Intel CPU Socket FCLGA4189-4/5(Socket P4/P5 or P+) Solution 1U Server and Up Material Copper1100 Heatsink with Vapor Chamber Base Fan Dimension 80 x 13 mm Speed At Duty Cycle 0-20%: 2000 +/- 200 RPM At Duty Cycle 50%: 4900 +/- 10% RPM At Duty Cycle 100%: 8600 +/- 10% RPM Rated Voltage 12V Bearing 2 Ball Bearing Power At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 4.7 W At Duty Cycle 100%: 23.45 W Air Flow At Duty Cycle 20%: 5.59 CFM At Duty Cycle 50%: 14.76 CFM At Duty Cycle 100%: 26.25 CFM Noise Level At Duty Cycle 20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA Air Pressure At Duty Cycle 20%: 3.69 mm-H2O At Duty Cycle 50%: 25.28 mm-H2O At Duty Cycle 100%: 89.80 mm-H2O Lead Wire Pin Out Pin1-Black(-) Pin2- Yellow(+) Pin3- Green(Tachometer/ Signal Output) Pin4- Blue (PWM) Thermal Grease Shin-Etsu 7762 Pre-printed Item Dimension (L"xW"xH") 6 x 5 x 3
