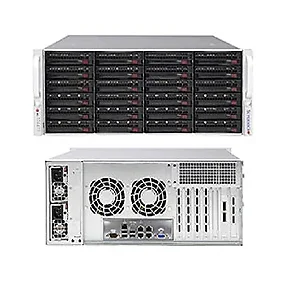

Supermicro CSE-846BE2C-R1K23B BLACK 4U SC846B W/ SAS3 DUAL

Form Factor
4U chassis support for max. motherboard size - EE-ATX (13.68" x 13"), E-ATX (12" x 13"), ATX (12" x 10") Processor Support
Single and Dual Intel and AMD processors Dimensions
Available Color
Black Expansion Slots
7 full-height and full-length expansion slot(s) Drive Bays
24 x 3.5" hot-swap drive bay Backplane
24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) Peripheral Drives
Optional 2 x 2.5" hot-swap drive bay
Optional 1 x 3.5" internal fixed drive bay
Optional 2 x 2.5" internal fixed drive bay Front Panel
Buttons
Power On/Off button
System
Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED Systems Cooling
Fans
3 x 8cm hot-swap redundant PWM cooling fan(s)
2 x 80mm rear hot-swap exhaust PWM fan(s) System Monitoring
Chassis intrusion switch Operating Environment (System)
Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
96%
Total Output Power and Input
1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vac
1200W with Input 200 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 83A (100Vac - 127Vac)
Max: 100A (200Vac - 240Vac)
Max: 100A (200 - 240)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT846-2824
Certification
Titanium Certified Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL Item Dimension (L"xW"xH")
35 x 27 x 14

Weight
96 lbs

Warranty Information
1 year
