Wichard Marine 11209 Wichard 20mm Diameter HR D Shackle - Heavy Duty

Wichard 20mm Diameter HR D Shackle - Heavy Duty

Overview:

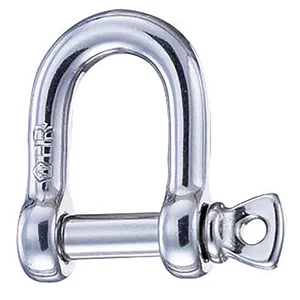

The Wichard HR D Shackle is designed for industrial applications demanding high load capacities. Constructed from high-resistance stainless steel grade (17,4 PH), this shackle offers exceptional strength and durability.

Applications:

• Ideal for high load-bearing applications.
• Used in standard lifting operations.
• Suitable for attachments like blocks and more.
• Not recommended for mooring purposes.

Specifications:

• Material: HR 17.4 PH stainless steel.
• Working Load (lb): 19400 / (kg): 8800
• Working Load Limit (WLL) (lb): 12340 / (kg): 5600
• Breaking Load (lb): 61720 / (kg): 28000
• Weight: 1.896 lb / 860 g

Dimensions:

• A: 2 3/4" (70 mm)
• B: 1 37/64" (40 mm)
• D diameter: 25/32" (20 mm)

*Sold individually.
