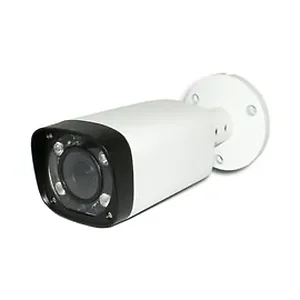

Vonnic VCVIB2401RZ-4M Cameras VCVIB2401RZ-4M 4MP 1.3COMS IP67 2.7-12mm Smart IR HD CVI BULLET Retail

Camera
Image Sensor:1/3" CMOS
Effective Pixels:2688(H)1520(V), 4.1MP
Scanning System:Progressive
Electronic Shutter Speed:PAL: 1/4s-1/100,000s NTSC: 1/3s-1/100,000s
Minimum Illumination:0.01Lux/F1.3, 0Lux IR on
S/N Ratio:More than 65dB
IR Distance:Up to 60m (197feet)
IR On/Off Control:Auto / Manual
IR LEDs:4
Lens
Lens Type:Motorized lens / Fixed iris
Mount Type:Board-in
Focal Length:2.7-12mm
Max Aperture:F1.3
Angle of View:H: 98^o-26^o
Focus Control:Auto / Manual
Close Focus Distance:200mm 7.87
Pan / Tilt / Rotation
Pan/Tilt/Rotation:Pan: 0^o - 360^o Tilt: 0^o - 87^oRotation: 0^o- 360^o
Video
Resolution:4MP (25601440)
Frame Rate:25fps4MP, 25/30fps1080P, 25/30fps720P
Video Output:1-channel BNC HDCVI high definition video output 1-channel BNC CVBS video output
Day/Night:Auto (ICR) / Manual
OSD Menu:Multi-language
BLC Mode:BLC / HLC / WDR
WDR:120dB
Gain Control:AGC
Noise Reduction:2D/3D
White Balance:Auto / Manual
Smart IR:Auto / Manual
Certifications
Certifications:CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface:N/A
Eelectrical
Power Supply:12V DC +-25%
Power Consumption:Max 11.1W (12V DC, IR on)
Environmental
Operating Conditions:-30^oC - +60^oC (-22^oF - +140^oF) / Less than 90% RH Start up should be done at above -30^oC (-22^oF)
Storage Conditions:-30^oC - +60^oC (-22^oF - +140^oF) / Less than 90% RH
Ingress Protection Vandal Resistance:IP67
Construction
CasingLAluminium
Item Dimension (L inchxW inchxH inch)
10 x 6 x 5 Weight
2.00lb Warranty Information
2 Year
