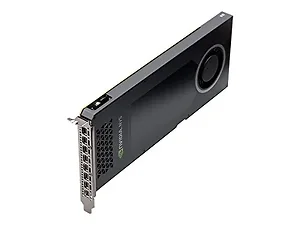

Pny Technologies VCNVS810DP-PB PNY Quadro NVS 810 Graphic Card - 2 GPUs - 4 GB DDR3 SDRAM - Single Slot Space Required -

Build Cost-Effective, Reliable Signage Solutions with the 8 Display Output, Single Slot Form Factor NVIDIA NVS 810


The NVIDIA NVS 810 graphics board delivers exceptional display connectivity, cost-effective scalability, and image management capabilities that make it easy to drive any kind of multi-display digital signage setup. It’s the first of its kind to offer eight display outputs, combined with the world’s most advanced GPU architecture—all in a single-slot form factor. NVS 810 is also ideal for creating dense signage solutions, delivering the uncompromised performance and reliability required to deploy demanding content in mission-critical signage installations.

Eight mini-DisplayPort 1.2 connectors on the NVIDIA NVS 810 are capable of driving UHD 4K displays at 60 Hz. Plus, it provides advanced features like multi-streaming and stream cloning that enable extremely efficient cable management and display flexibility in complex installations. Key NVIDIA features like bezel correction, synchronization across 8 displays, Warp & Blend, and Mosaic make digital signage easy.

CUDA Cores
1,024 (512 per GPU)

GPU Memory
4GB DDR3 (2GB per GPU)

Memory Interface
128-bit (64-bit per GPU)

Memory Bandwidth
28.8GB/s

System Interface
PCI Express 3.0 x16

Maximum Power Consumption
68W

Energy Star Enabling
Yes

Thermal Solution
Ultra-Quiet Active Fansink

Form Factor
4.40 H x 7.80 L, Single Slot

Display Connectors
8 Mini DisplayPort

DisplayPort 1.2
Yes

DisplayPort with Audio
Yes

Mini-DP to DP Adapters
8 Included

Number of Displays Supported
8 at 4096 x 2160 at 30Hz (4 at 4096 x 2160 at 60Hz)

Maximum DP 1.2 Resolution
4096 x 2160 at 60Hz (3840 x 2160 at 60Hz also available)

1920x1200 at 60Hz

HDCP Support
Yes

Graphics APIs
Shader model 5.0, OpenGL 4.3, DirectX 11

Compute APIs
CUDA, Direct Compute, OpenGL

NVIEW
Yes

NVIDIA Mosaic
Yes (Windows 10, 8.1, 8, 7, and Linux)

Bezel Correction
Yes

Wrap and Blend
Yes

Synchronization
Yes (8 Displays Hosted by a Single NVS 810)

Minimum System Requirements
Microsoft Windows 10, 8.1, 8, Linux or Solaris
PCIe x16 Expansion Slot
1GB or More of System Memory, 2GB Recommended
200MB of Available Disk Space for Full Driver Installation
Blu-Ray, DVD-ROM or CD-ROM Drive
DisplayPort Compatible Displays (Via the Included mDP to DP Adapters)

Package Contents
NVIDIA NVS 810 Professional Graphics Board
8 Locking Mini-DisplayPort to DisplayPort Adapters
Software Installation Disc for Windows 10, 8.1, 8, 7 (32 and 64 Bit)
Printed Quick Start Guide

Item Dimension (L"xW"xH")
14 x 8 x 4

Weight
3.00 lb

Warranty Information
3 Years
