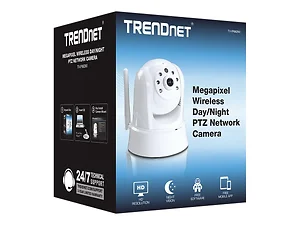

Trendnet TV-IP662WI TV-IP612WN Wireless PTZ Network Camera

Specifications

• Mfr Part Number: TV-IP612WN
• General:
  • Sensor: 1/4" CCD Sensor

  • Focal Length: f(wide) 3.8mm to f(tele) 38.0mm
  • F/No: F(wide)=1.8, F(tele) = 2.8
  • LENS: Auto focus zoom lens with IR cut filter
  • Zoom Ratio: 10x optical zoom plus 16x digital zoom
  • Color: full color or black and white mode
  • Day & Night image Modes: Automatic or scheduled transition between modes
  • Minimum illumination: Color - 0.7 lux@F1.8; B/W - 0.02 lux@F1.8
  • View:
    • Wide Angle: Horizontal - 51.3°; Vertical - 39.3°
    • Max. Zoom Angle: Horizontal - 5.6°; Vertical - 7.3°
• Audio:
  • Built-in Omni-directional Microphone
  • Sensitivity: -40dB +/- 3dB (5 meters max.)
  • Frequency: 100-2 Hz
  • S/N: >60dB
  • Codec: ARM/PCM
  • External Speaker Output (speaker sold separately)
  • Two-way Audio with Echo Canceling
• Pan & Tilt:
  • Pan: -165° - +165°
  • Tilt: up 84° and down 31°
  • Preset Positions: 20
  • Auto Patrol and Manual Controls
• Image & Video:
  • Compression: simultaneous H.264/MPEG-4/MJPEG
  • Profiles: up to 4 profiles simultaneously
  • IRIS Control/white balance control: automatic
  • Resolution: 704 x 480, 352 x 240, and 176 x 112 @ 30fps (NTSC)
  • Resolution: 704 x 576, 352 x 288, and 176 x 144 @ 30fps (PAL)
  • Built-in ICR
• GPIO:
  • Input: 1 set
  • Output: 1 set
• Micro SD Slot: Micro Secure Digital card (up to 16G)
• Hardware:
  • Network: IEEE 802.3u 10/100 Mbps Auto-MDIX Fast Ethernet
  • LED: Power, Link/Act
  • Reset Button: Reset to factory default
  • Power Consumption: 12 Watts (max.)
  • Power: 12V, 2A external power adapter
• Requirement:
  • To View Camera: Internet Explorer 7.0 or above, Firefox 3.5 or above, Safari 4.0 or above
  • To Run Software: Windows 10, 8.1, 8, 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
  • IPView Pro 2.0:
    • Channel: supports up to 32 cameras
    • Record/Playback/Motion Detection/Audio
  • Network Protocols:
    • IPv4, ARP, TCP, UDP, ICMP
    • DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
    • HTTP
    • Samba Client
    • PPPoE
    • UPnP
    • RTP (Real Time Protocol)
    • RTCP (Real Time Control Protocol)
    • RTSP (Real Time Streaming Protocol)
• Wireless:
  • Standard: IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n
  • Frequency: 2.4 - 2.497 GHz ISM band
  • Modulation:
    • DQPSK, DBPSK, DSSS and CCK
    • OFDM: BPSK, QPSK, 16QAM, 64QAM
  • Antenna: 2x detachable 2dBi dipole antennas (Reverse-SMA connector)
  • Date Rate:
    • 802.11b: up to 11 Mbps
    • 802.11g: up to 54 Mbps
    • 802.11n: up to 300 Mbps
  • Security: 64/128-bit WEP, WPA/WPA2-PSK
  • Output Power:
    • 802.11b: 18dBm (typical)
    • 802.11g: 15dBm (typical)
    • 802.11n: 13dBm ((typical)
  • Receiving Sensitivity:
    • 802.11b: -85dBm at 11 Mbps
    • 802.11g: -73dBm at 54 Mbps
    • 802.11n: -65dBm at 300 Mbps
  • Channels: 1-11 (FCC), 1-13(ETSI)
• Management:
  • Accounts: Up to 20 user accounts
  • Remote Login: Remote management supported
  • Backup/Restore: Save/retrieve configuration files
  • Log: System log up to 1023 entries
• Settings:
  • Image: Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical), black & white, day, night, schedule mode
  • Video Setting:
    • Encoding Type: MJPEG/MPEG-4/H.264
      • Resolution: 704 x 480, 352 x 240, 176 x112 (NTSC)
      • Resolution: 704 x 576, 352 x 288, 176 x144 (PAL)
      • Max. Frame Rate: 30 fps (NTSC)/30 fps (PAL)
  • Recording:
    • Resolution: Define individual resolution for up to 4 profiles
    • Required Storage: 32MB (minimum per profile)
    • Recording Type: event based (motion detection and digital input trigger), continuous, and scheduled
  • Snapshot:
    • Trigger Event: motion detection or digital input signal
    • Action: send alert email and/or upload to FTP
    • Real Time Snapshot
  • Port Settings:
    • HTTP Port: 80 (default)
    • RTSP Port: 554 (default)
  • Dynamic DNS: Yes
• Certifications: CE, FCC
• Dimension: 4.9 x 5.1 x 4.9 inch / 125.0 x 130.0 x 125.0 mm
• Weight: 28.22 oz. / 800.0 g (Camera)
• Package Contents:
  • TV-IP612WN
  • CD-ROM (Utility & User's Guide)

  • Cat. 5 Ethernet cable (1.5 m / 5 ft.)
  • Power adapter (12V, 2A)
  • Camera mounting kit
  • AV Cable AV Cable (25 mm / 10.5 in.)
